Sorry to necro my old, old, post, but I recently got a PM for some more information relating to HIC knobs. I considered a new post, but as the rest of the information I have on various Michell parts has ben posted here, I thought this would clog the board less. Seeing as responding by PM only would limit the information to me and one other only, I chose to go here.

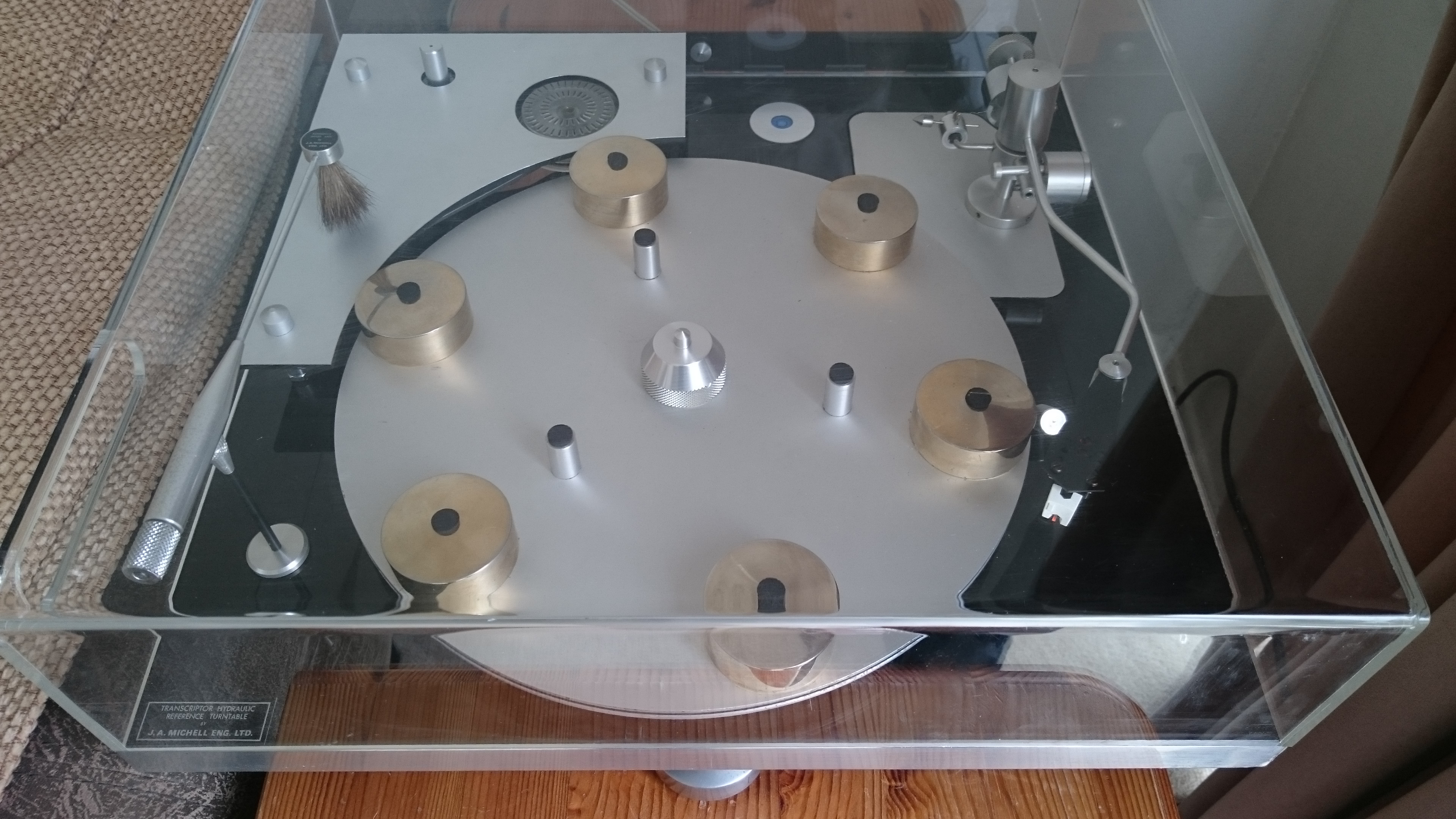

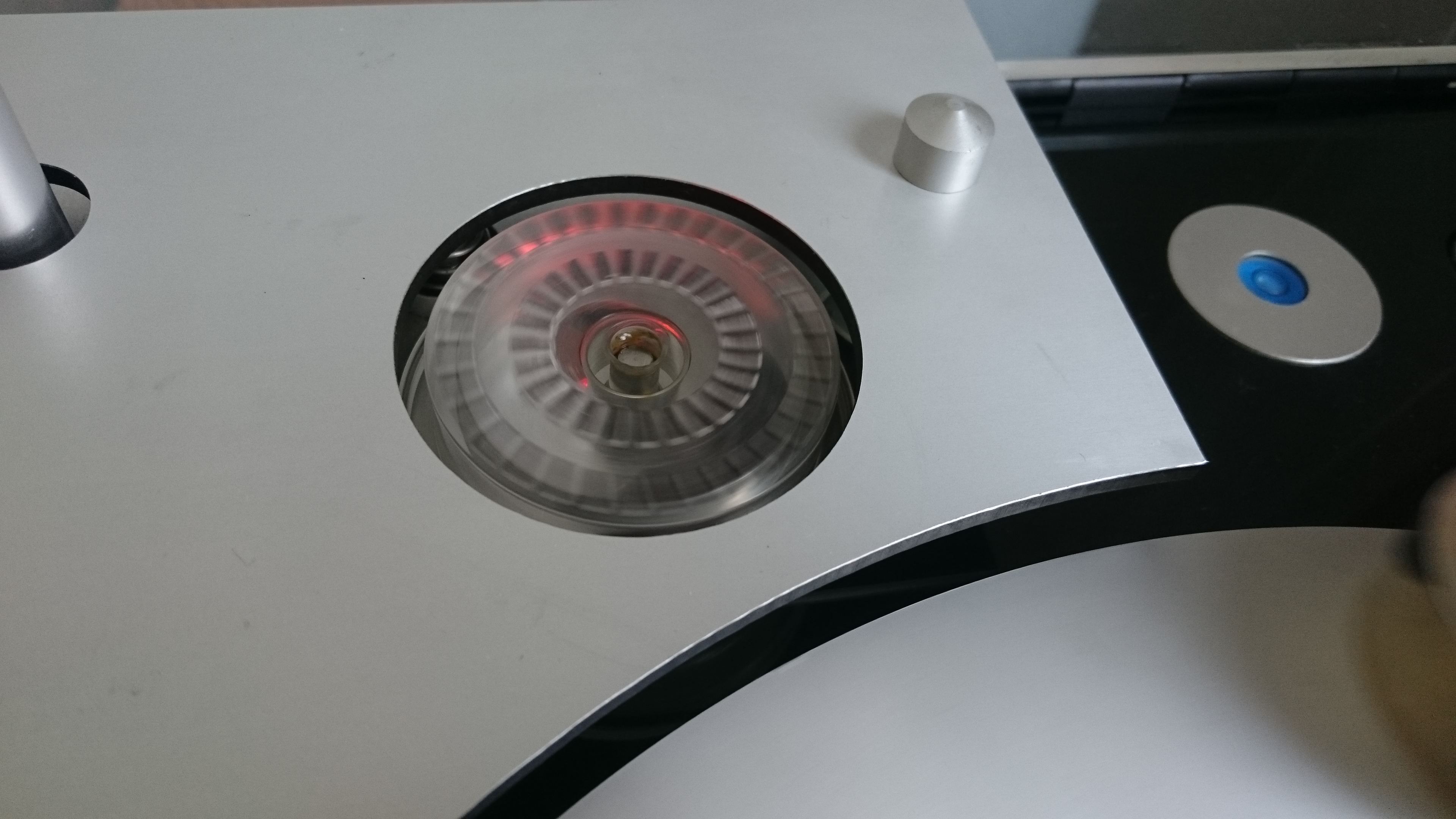

Also, you get to see my beautiful turntable... again.
Each knob retains its respective position in the two shots.
Left to right:
On-off switch for the Hydraulic Reference TT (annoyingling, I actually have one of these removed from the motor cover, but I cannot find it).
Counter weight for the Sweep Arm used for several Boba parts. Mostly, I have seen these on the Focus One.
Conuter weight for the classic, tall, HR sweep arm.

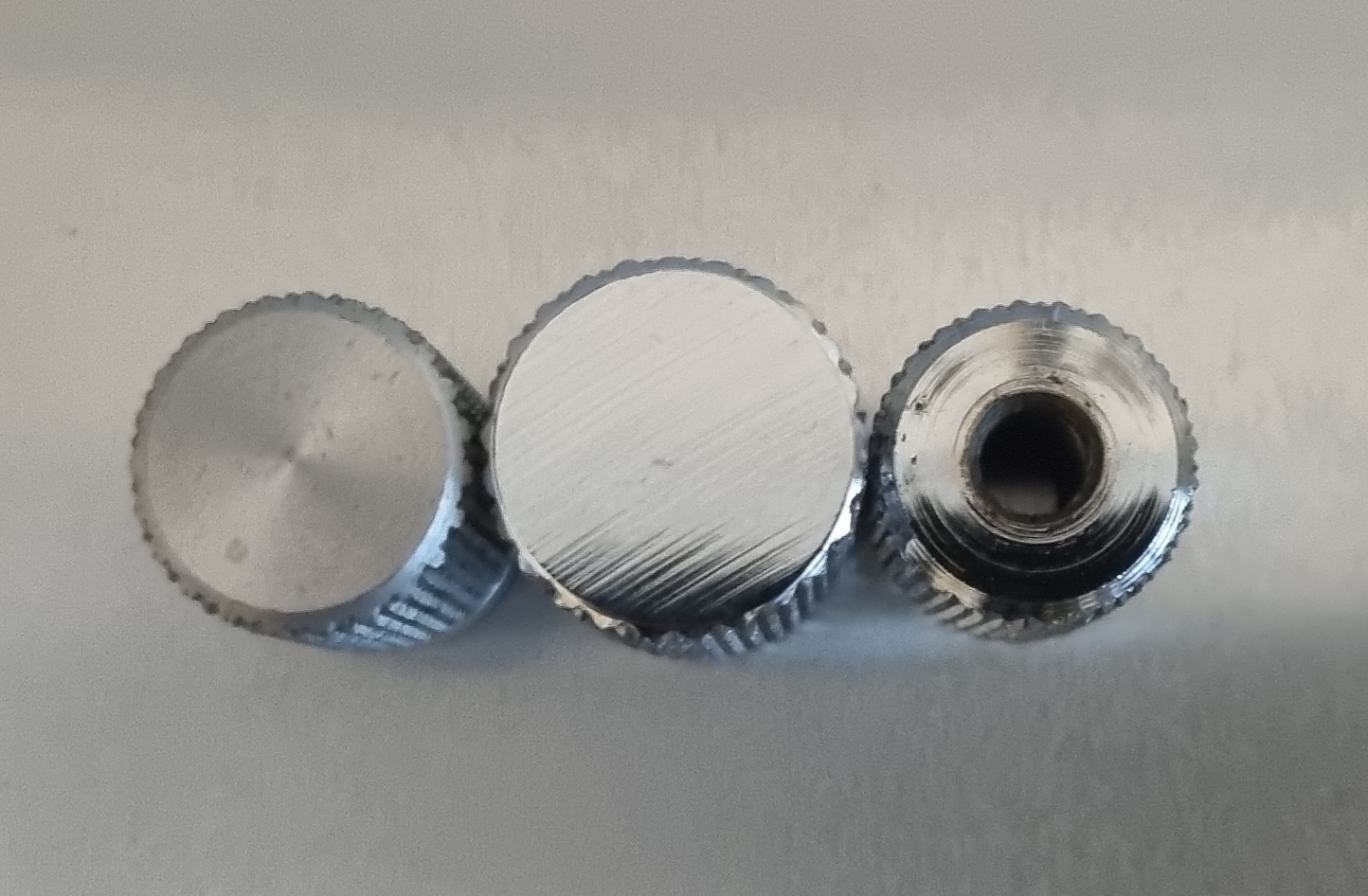

Top view:

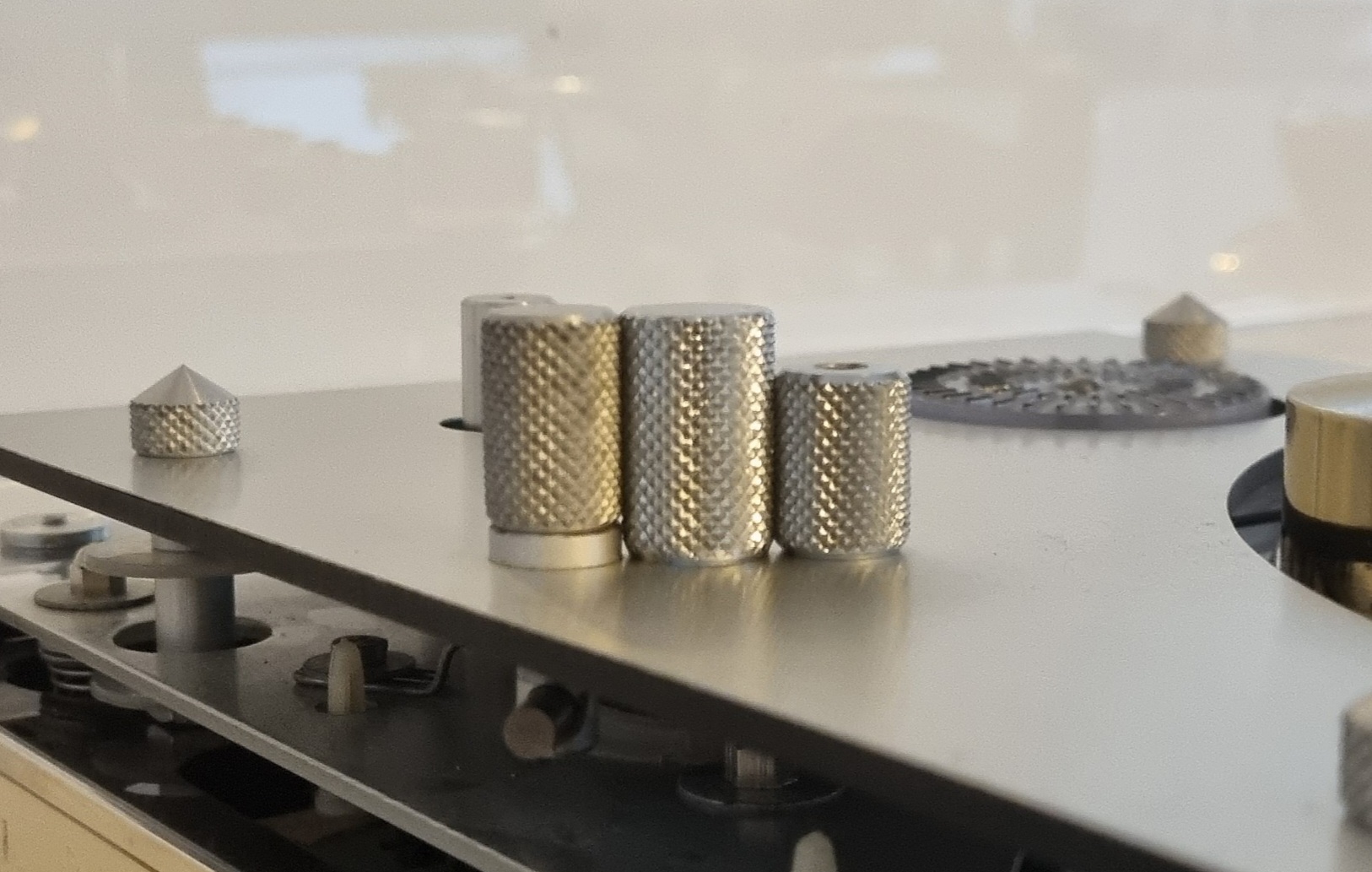

Side view:
Here are the respective measurements. Measurements were taken with digital calipers, with the exception on the on-off switch height; sorry, guys, but I'm not going to start taking my TT apart for the purpose of this discussion. In the case of the on-off switch, I stood a rule next to the part. In all cases, I rounded down to the nearest tenth.
Width:
On-off switch: 12.9 mm
Focus One sweep: 14.5 mm
Classic HR sweep: 13.1 mm
Height:
On-off switch: 20.0 mm
Focus One sweep: 23.0 mm
Classic HR sweep: 17.4 mm
The base mount for the on-off switch is about 3mm high, which would correlate with the on-off and the focus one weight being approximately the same height.
Paul
roctopus , I hope this helps.
Peace.
Andy
