Hutt Family Workshop helmets history ( from paper to fiberglass and painted)

Uhbif

Hunter
Hello everyone!

I thought maybe this would be interesting )
I really like the helmet of Boba Fett and in the process of working on the costume I made helmet based on Pepakura.

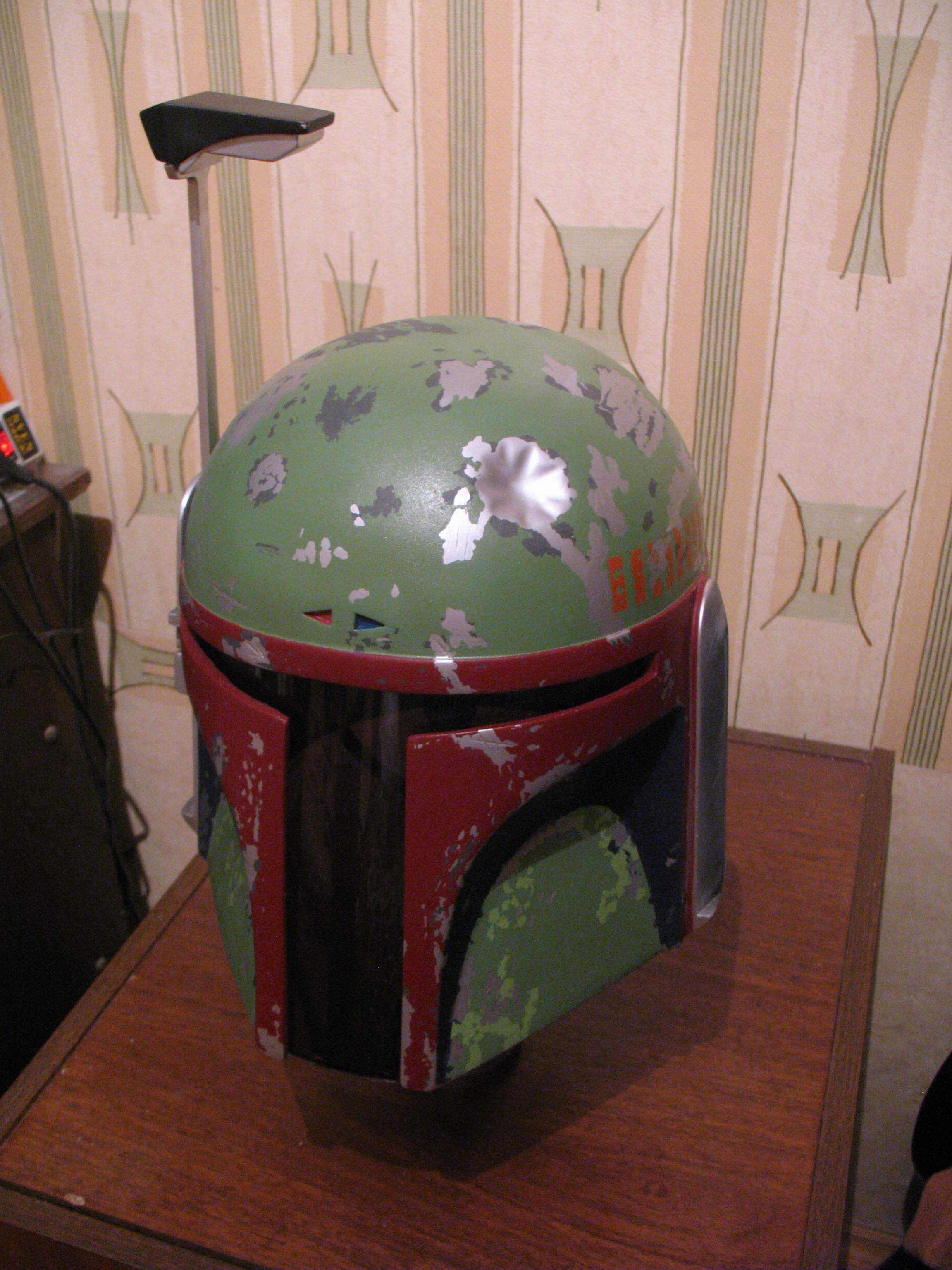

he111.jpghe112.jpghe1123.jpghe1125.jpghe1126.jpgView attachment he1127.jpgIMG_7235.jpgФото0267.jpggL9G83vX0mE.jpg

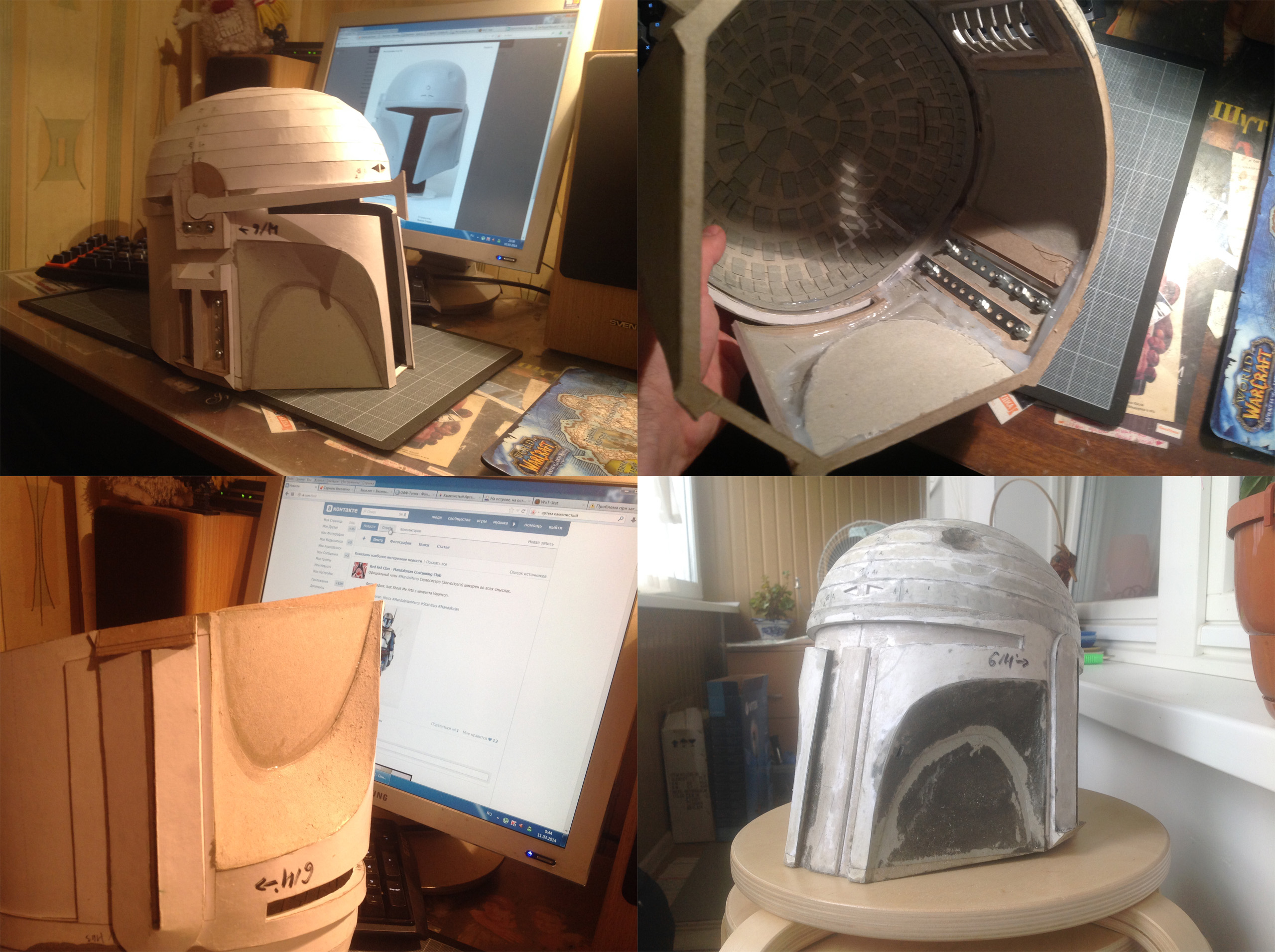

I made a lot of changes, but their was not enough, the helmet came not accurate and a small size, but I believed in themselves and began the second.

Second helmet doing in size and pictures found on this site +/- a few millimeters


WIP )

p,s, and sorry for my bad English )











View attachment he1127.jpg




















Last edited by a moderator:
What did you use over to cardboard on your keyhole? And what did you use to sand it down? It looks so good, I'm struggling with mine lol

Last edited by a moderator:
What did you use over to cardboard on your keyhole? And what did you use to sand it down? It looks so good, I'm struggling with mine lol

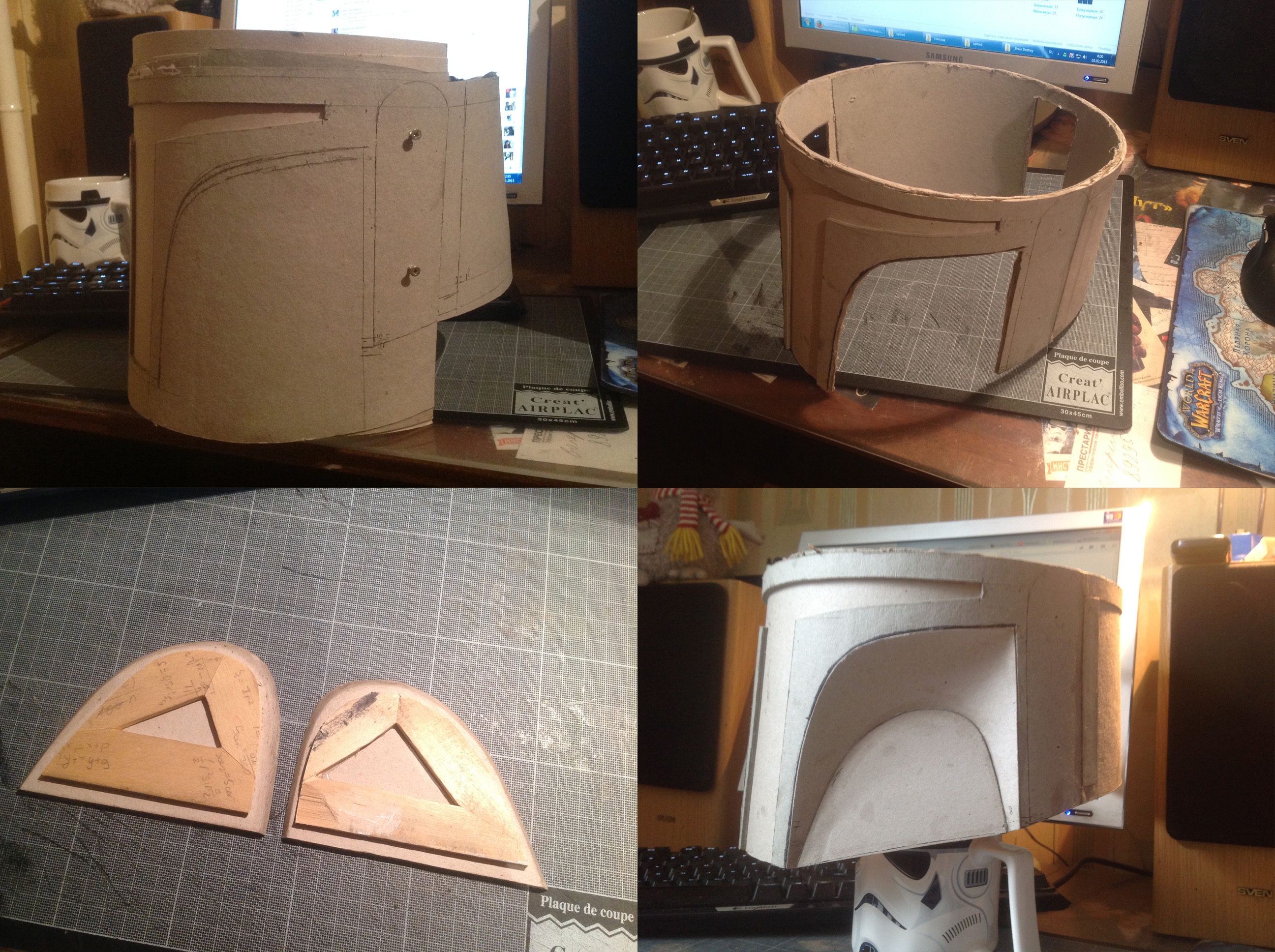

1 - paper model

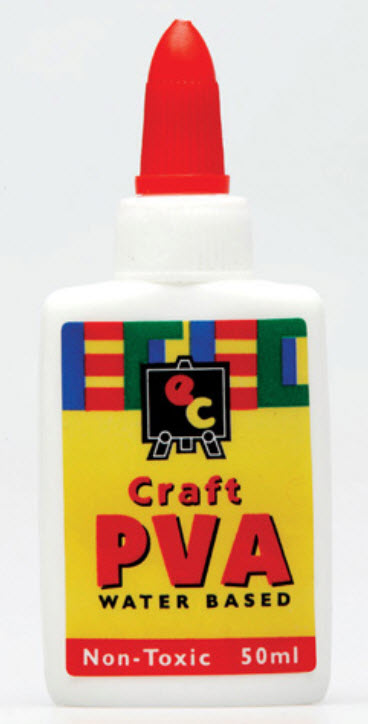

cardboard 0.7mm x 3 layers and PVA glue
(this glue is absorbed in a cardboard and becomes very firm after drying and perfectly holds a form)

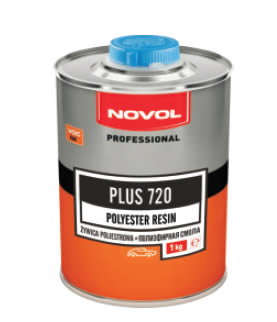

2 - polyester resin
(this thing is dangerous to health, I use it because I'm not going to wear a helmet on my head)

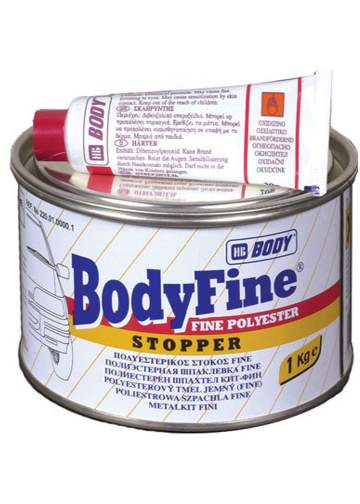

3 - polyester car body filler (I used bodyfine)

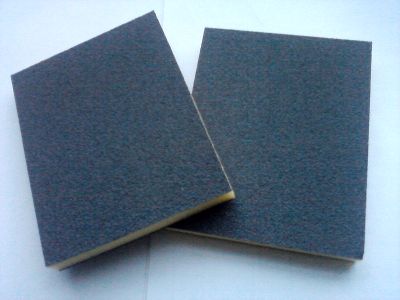

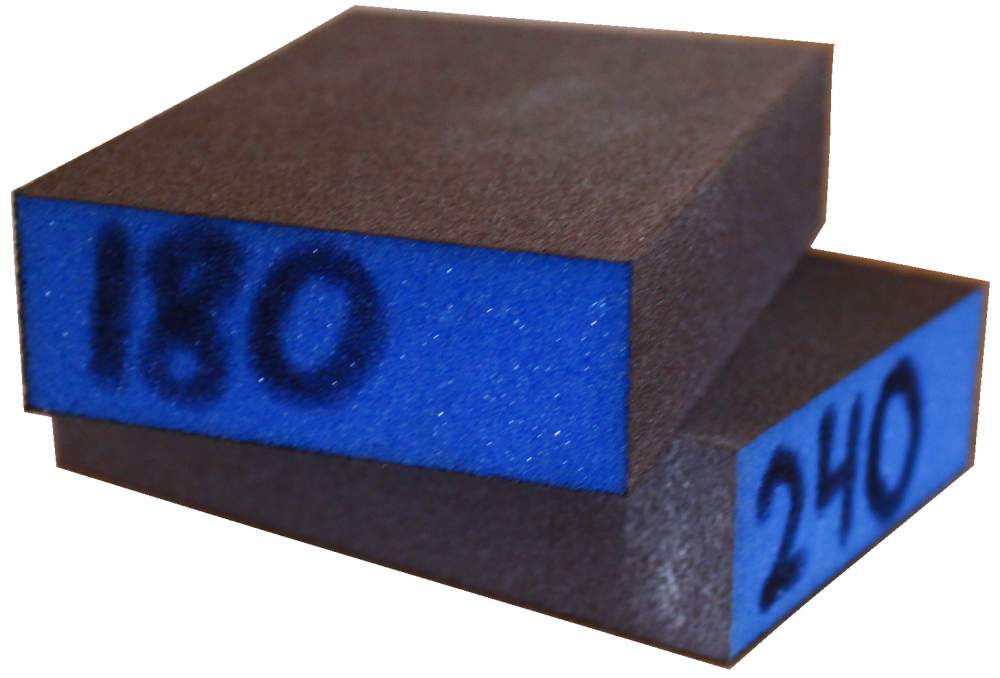

4 - grind before installation, because it is more convenient and better result

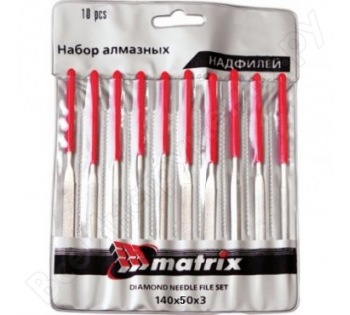

(diamond files can be washed in water!)

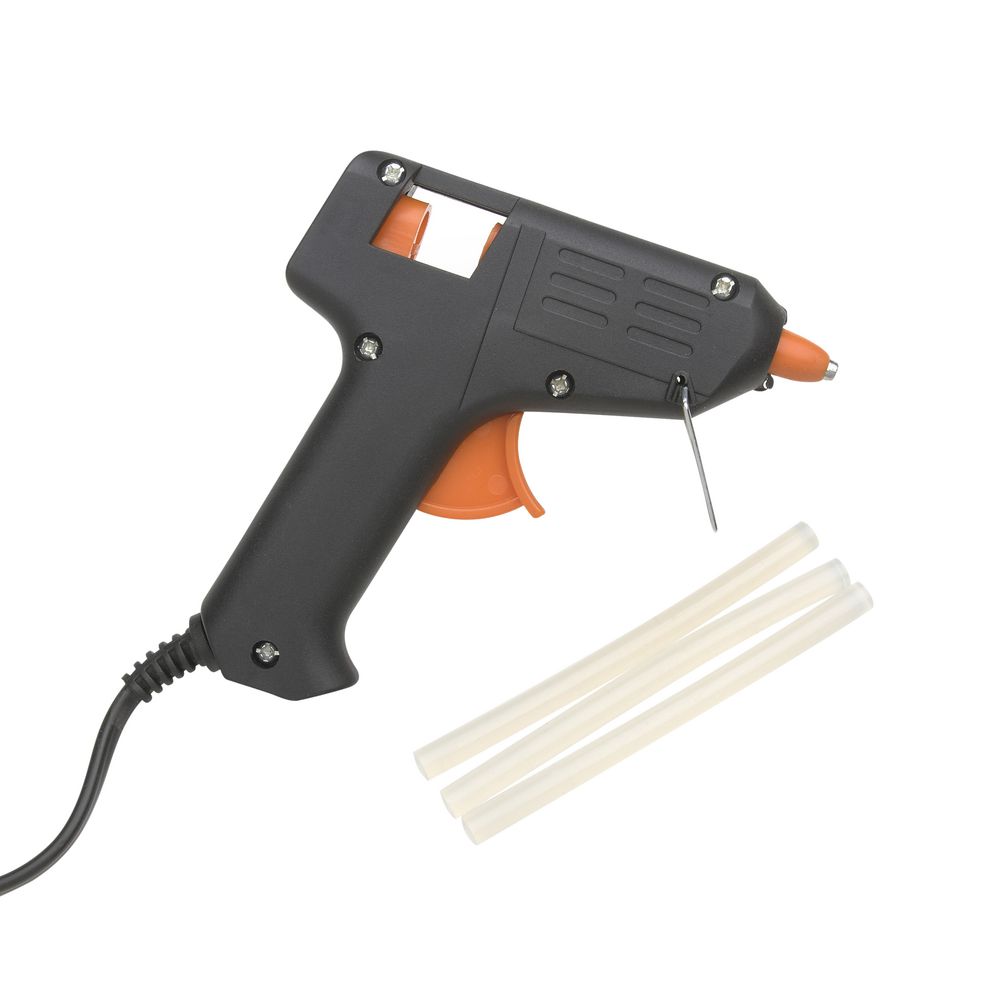

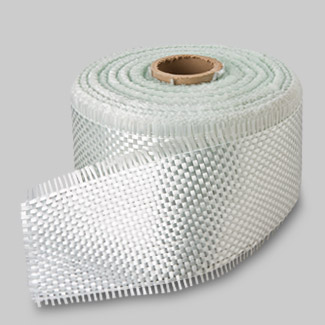

5 - install using hot glue and polyester resin with fiberglass



















Last edited by a moderator:

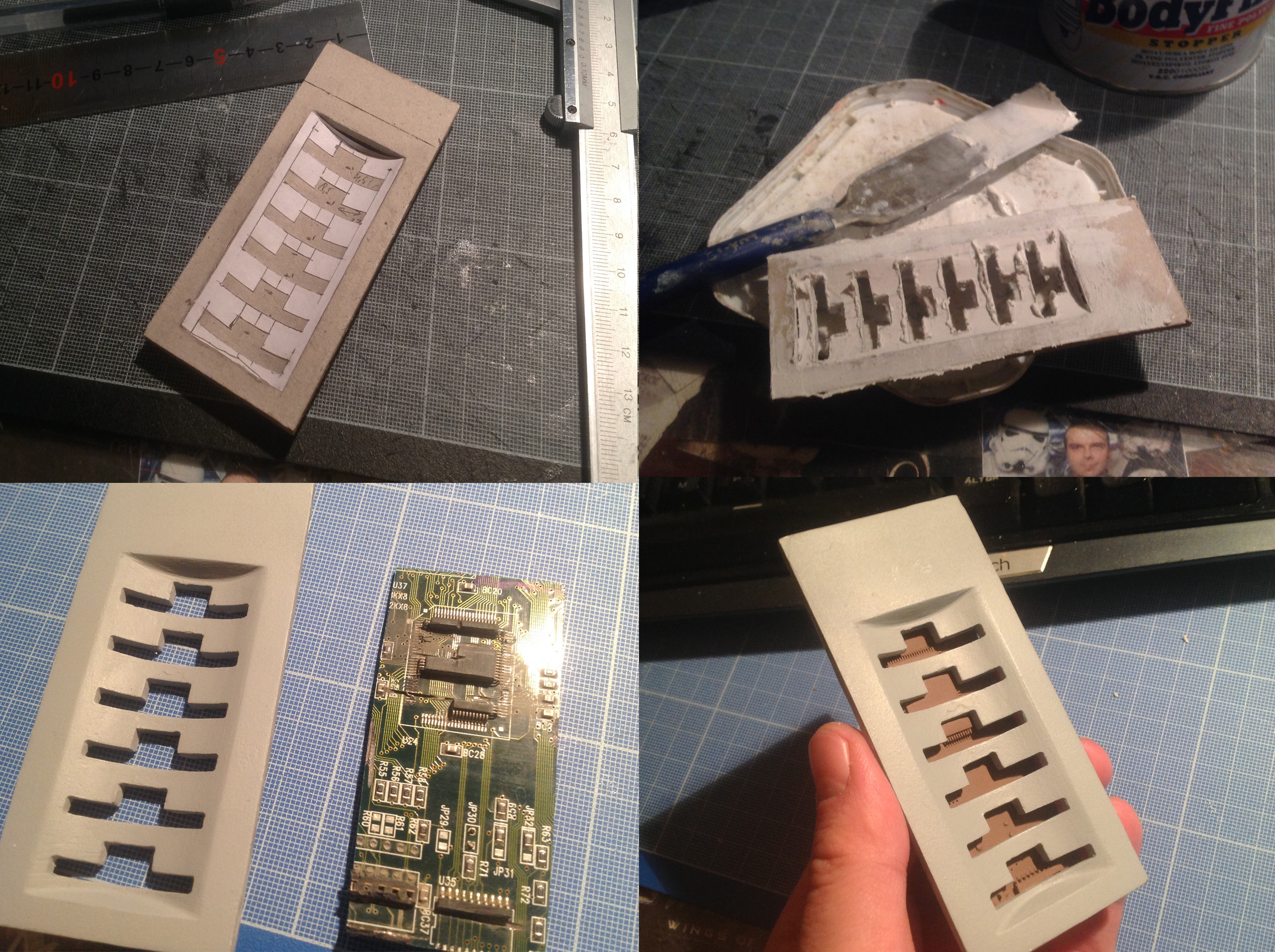

The devil is in the details....

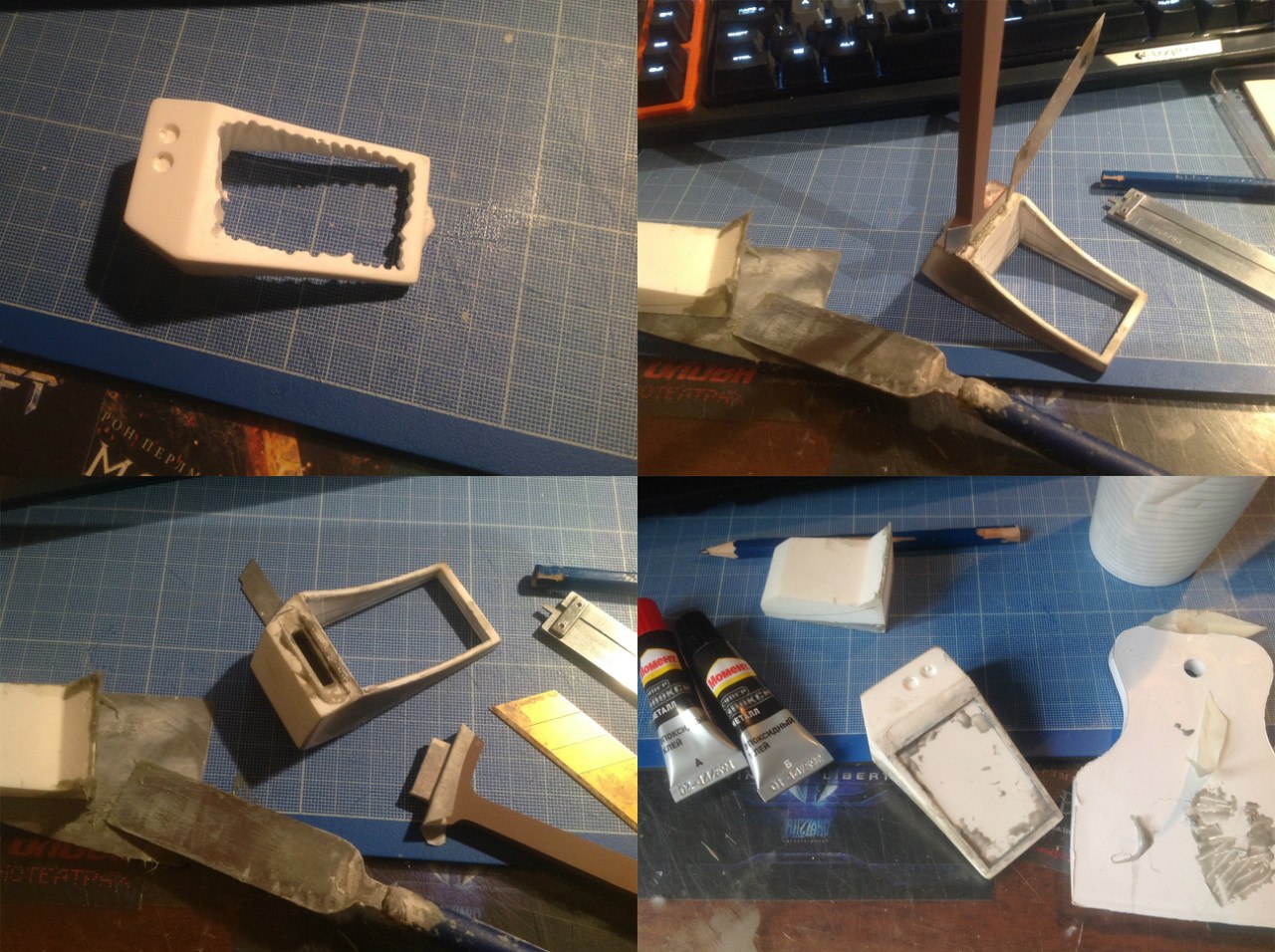

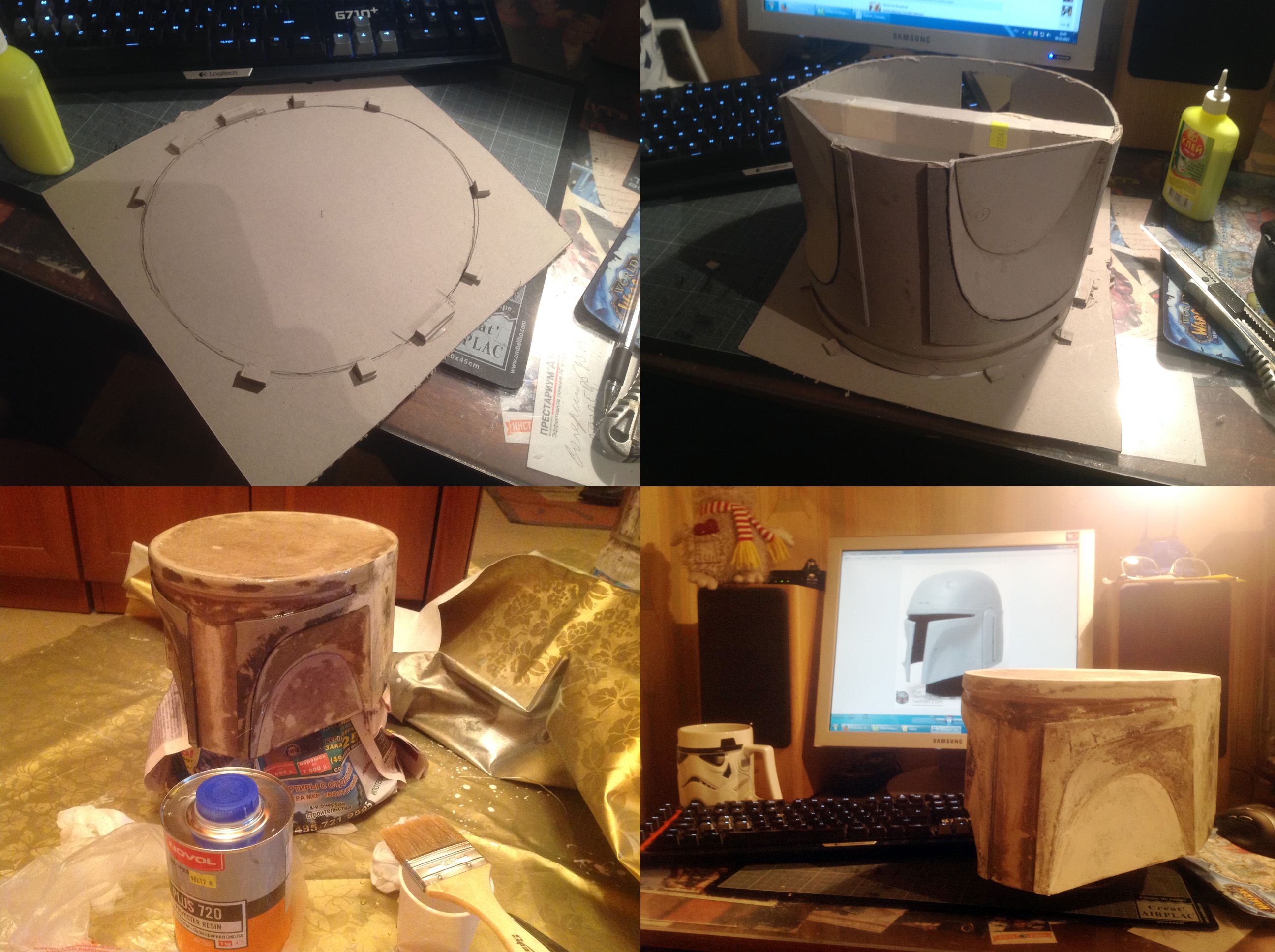

cut the cardboard and polyester resin

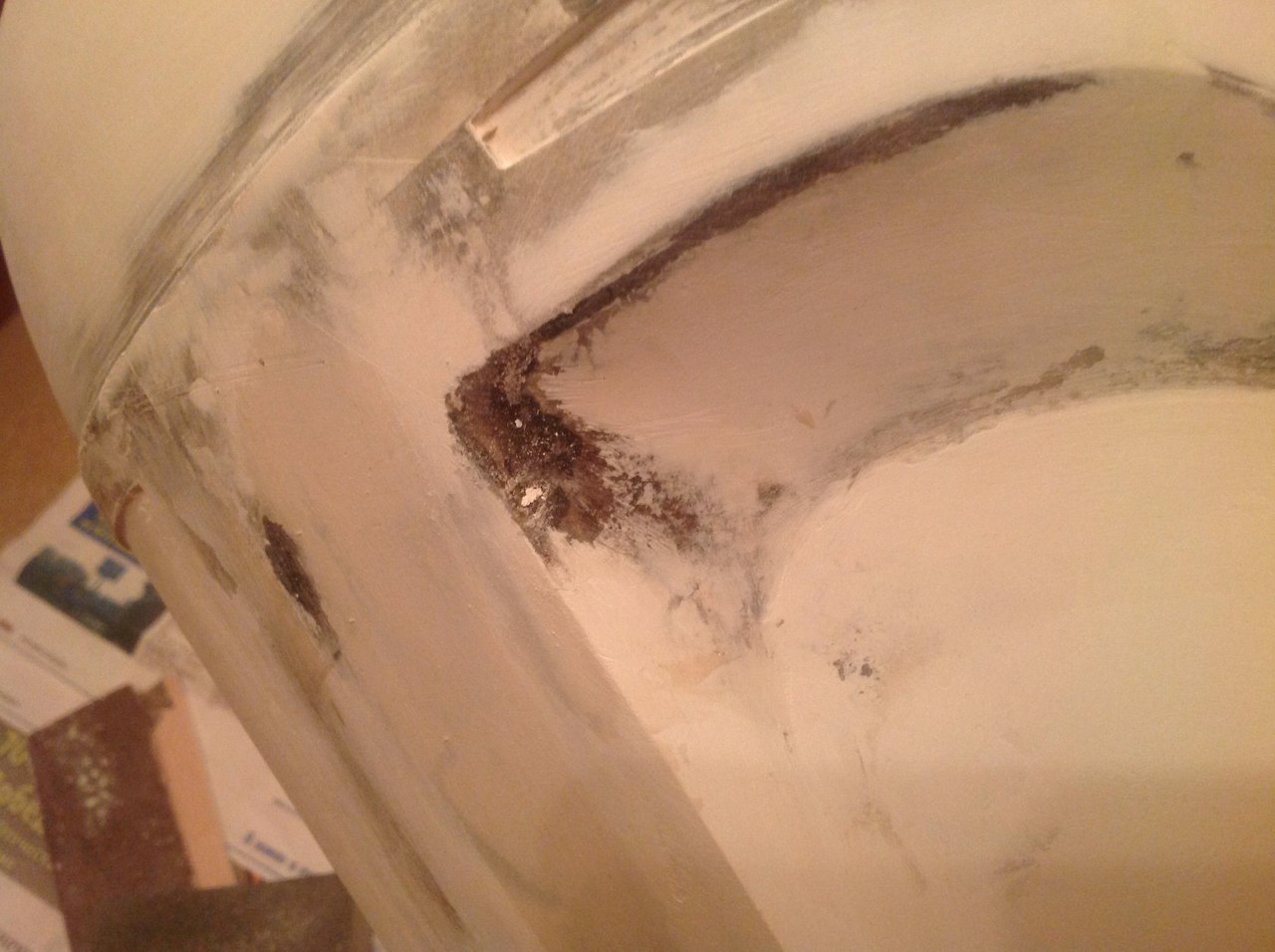

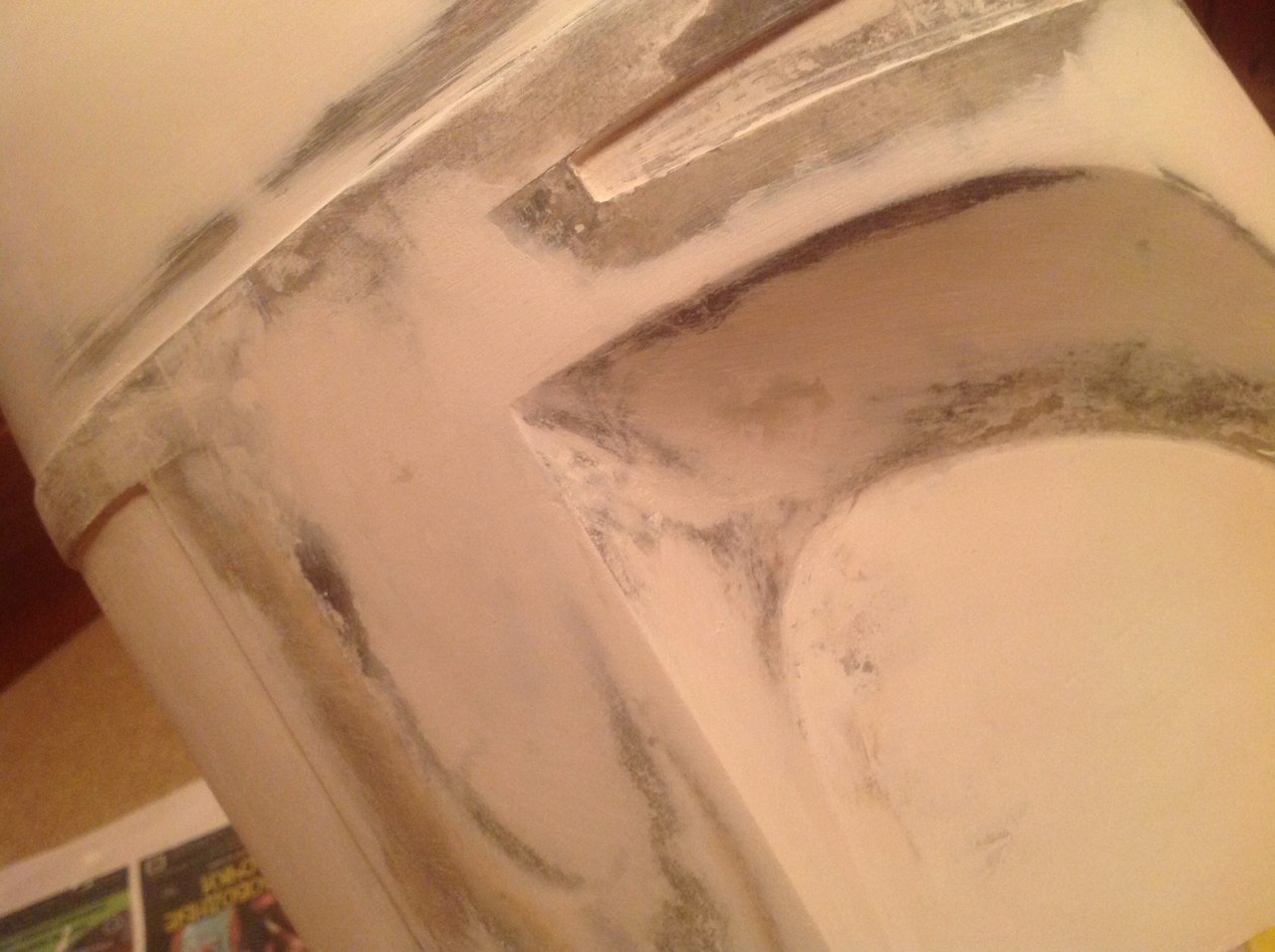

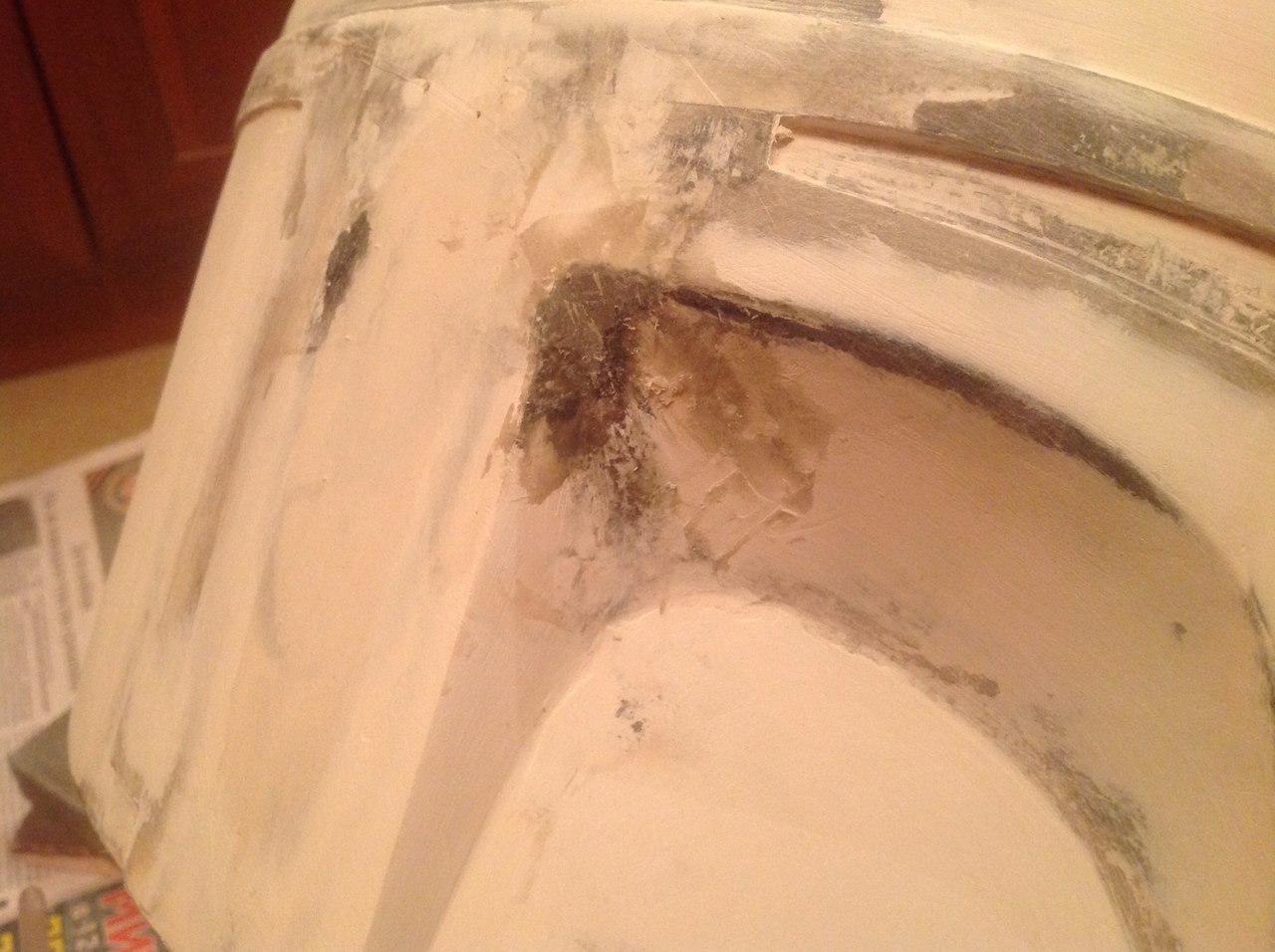

automotive body filler with fiberglass

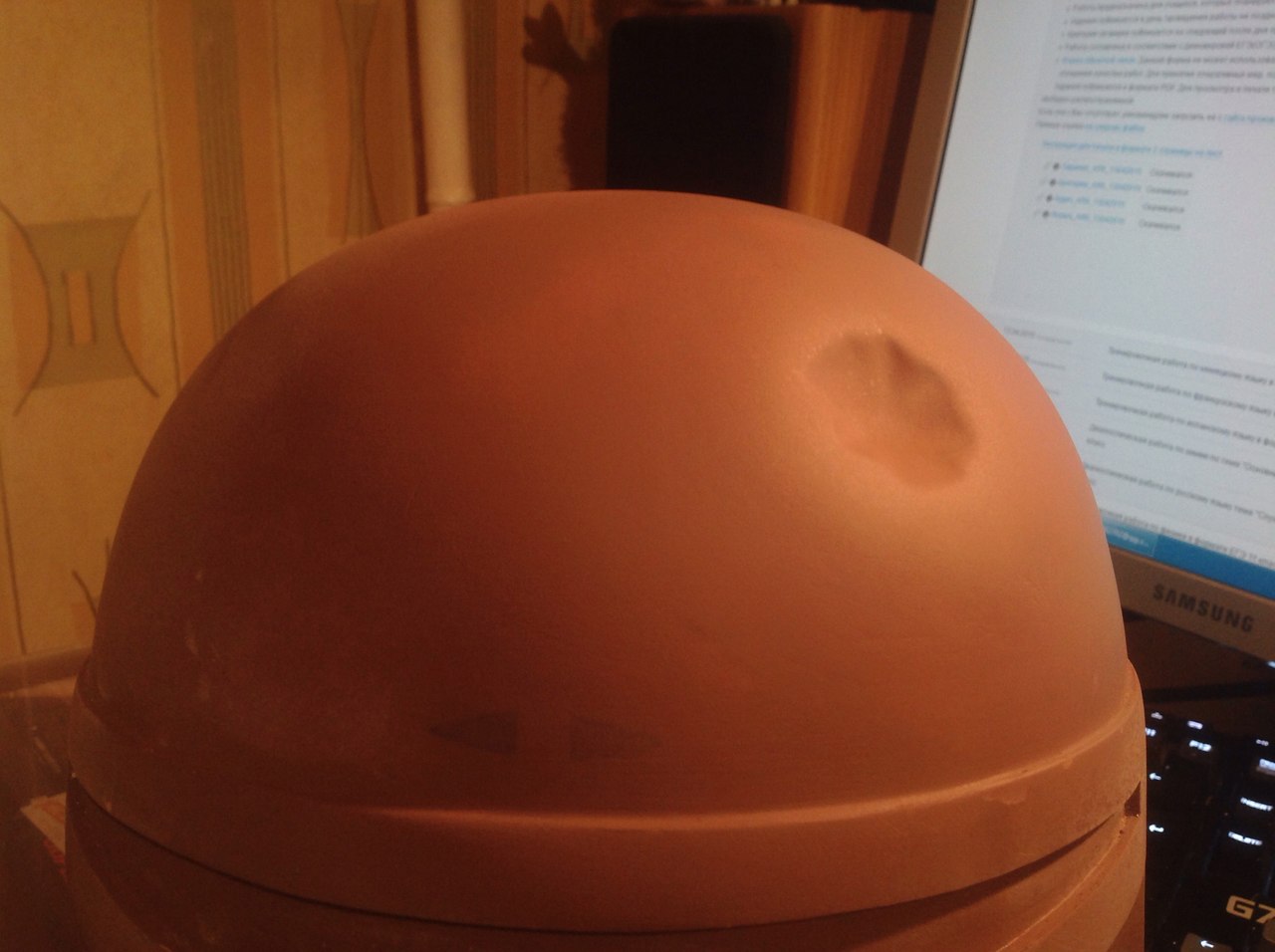

final putty and needle files






Last edited by a moderator:
Thank you all for your kind words )

what did u use for the master??
Didn't fully understand, what I used patterns?

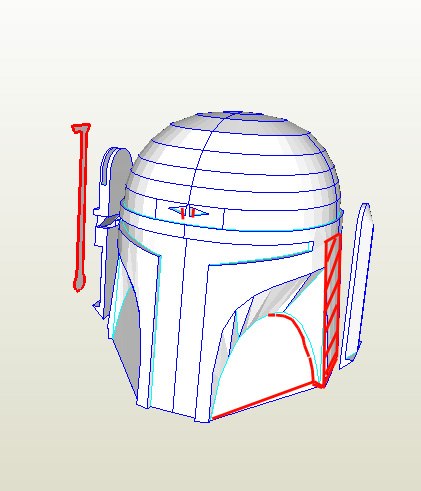

1st helmet - pepakura, but it's bad, I did a lot of fixes and was unhappy with the result (\/)o_O(\/)


2nd helmet - patterns and pictures that I found here, I like it + I have experience crafting the first helmet + I learned a lot of good information about the helmet




Last edited by a moderator:
Thank you all for your kind words )


Didn't fully understand, what I used patterns?

1st helmet - pepakura, but it's bad, I did a lot of fixes and was unhappy with the result (\/)o_O(\/)
View attachment 86504

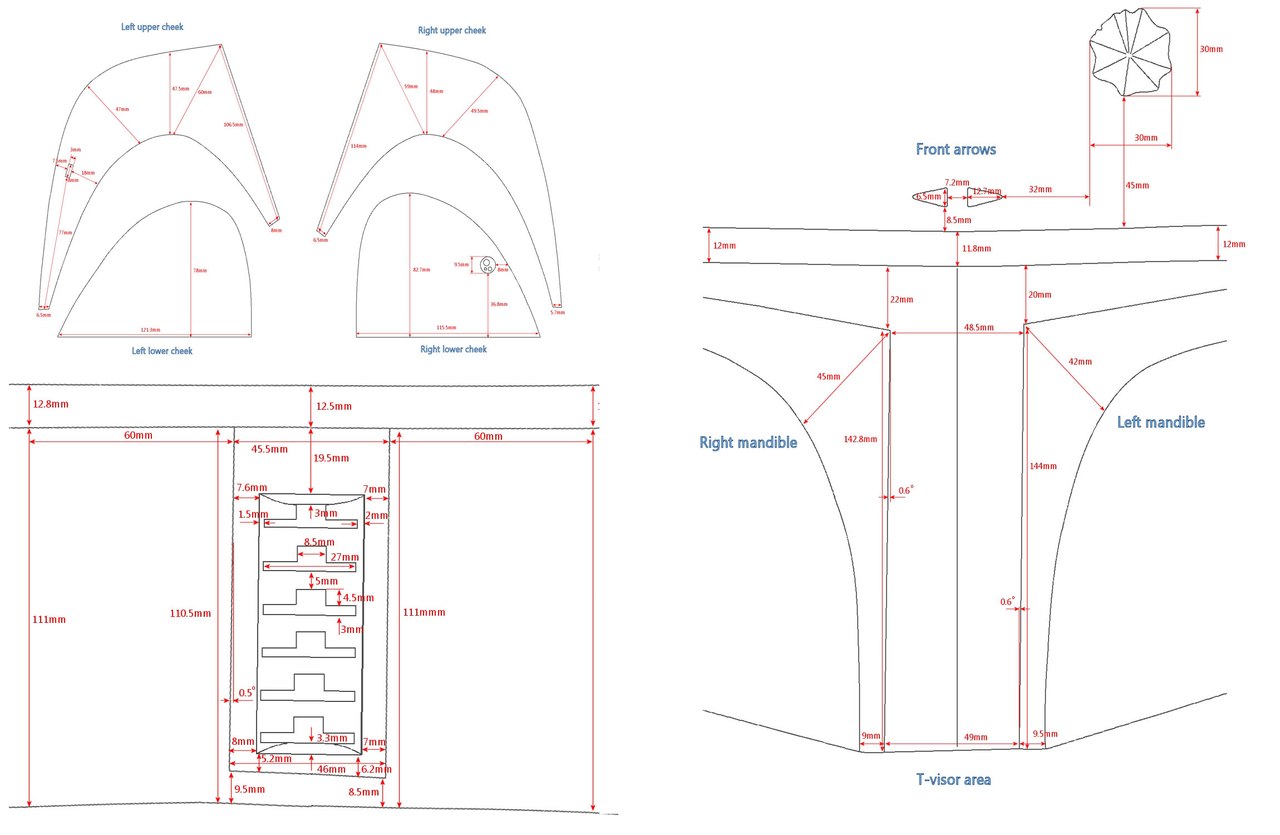

2nd helmet - patterns and pictures that I found here, I like it + I have experience crafting the first helmet + I learned a lot of good information about the helmet
View attachment 86503
i mean how do you do the copy in plastic?? what is the product u use for make the mold ? :)

Last edited by a moderator:
Oh, sorry

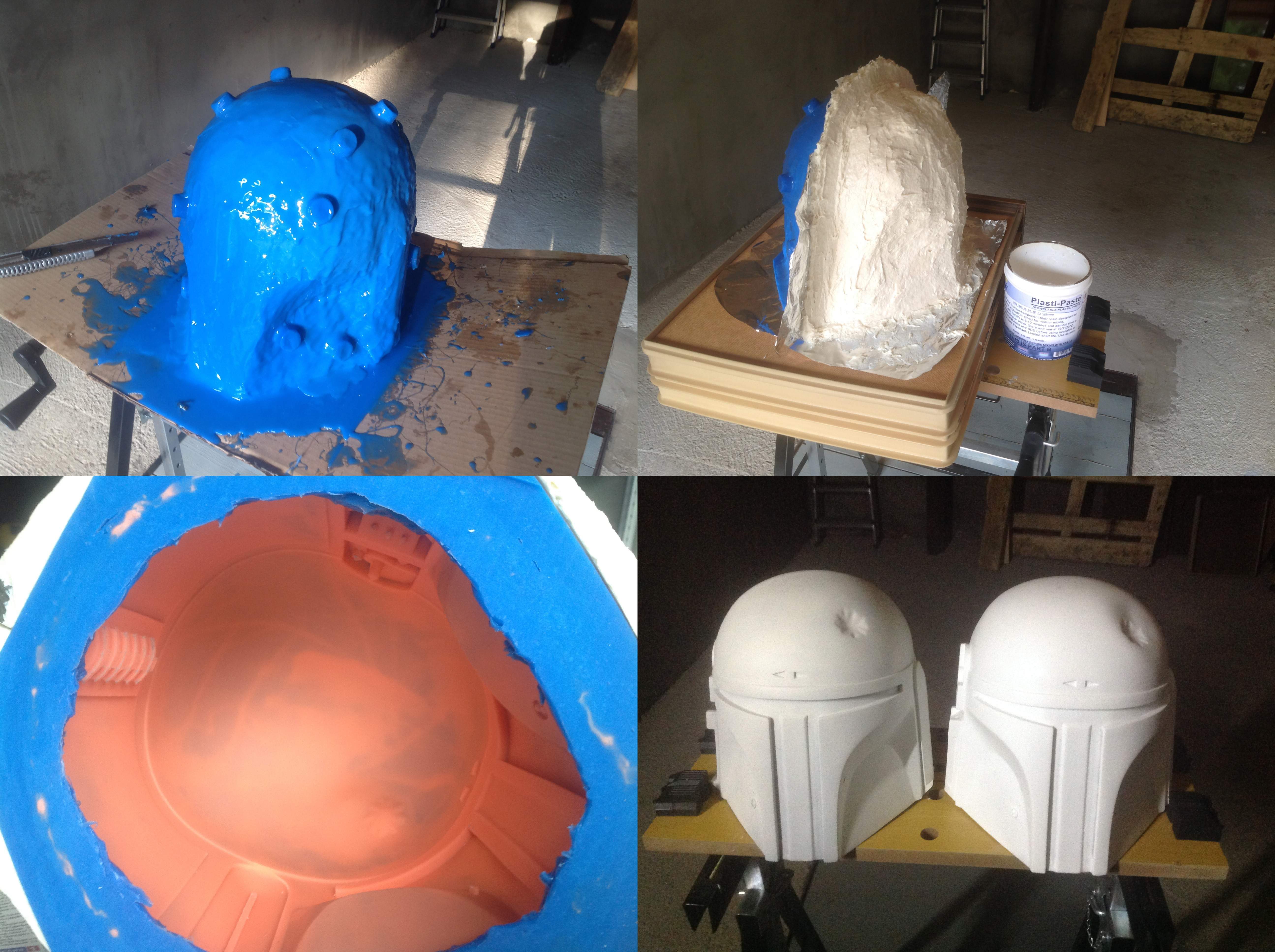

the first layer - Rebound 25
the second layer and the following - Mold Star 30 + THI-VEX
Frame for form - Plasti-Paste

Plastic - Smooth Cast 300

Last edited by a moderator:
offtop ^.^

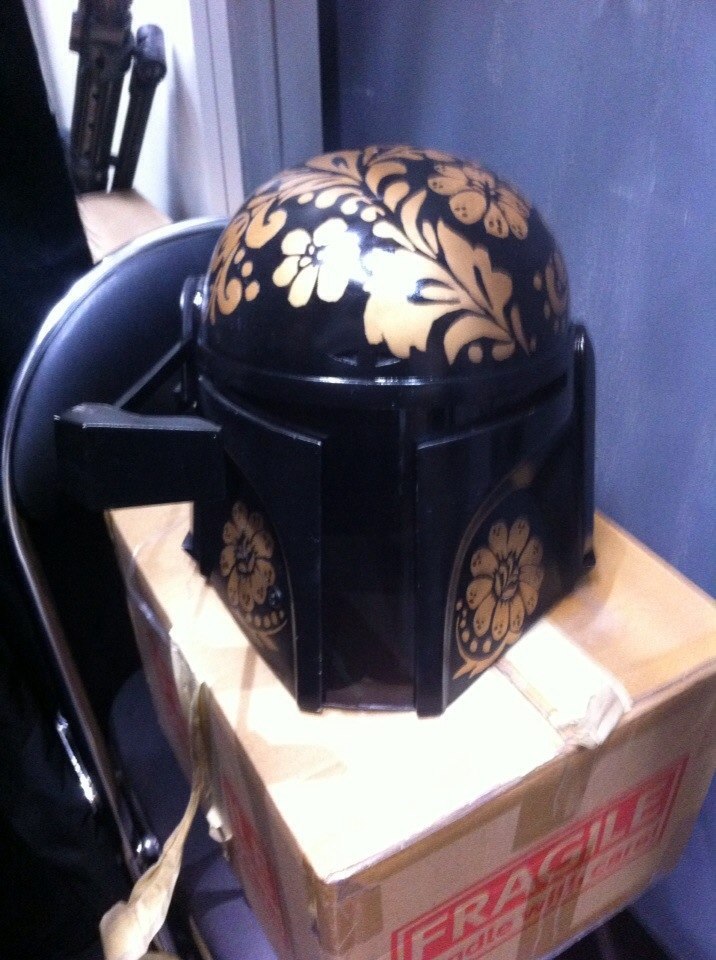

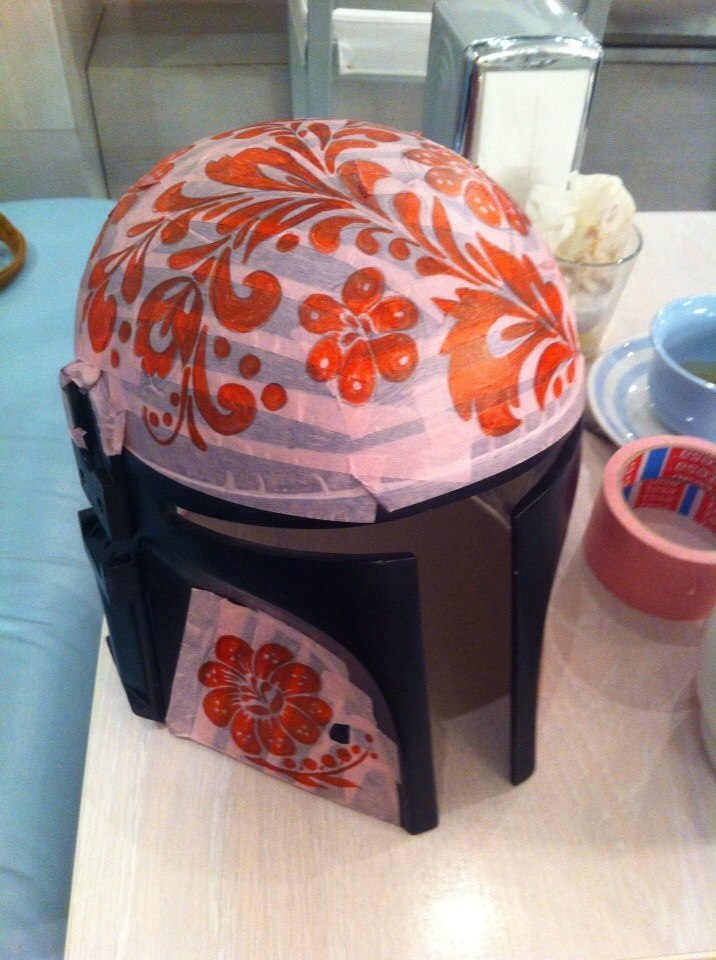

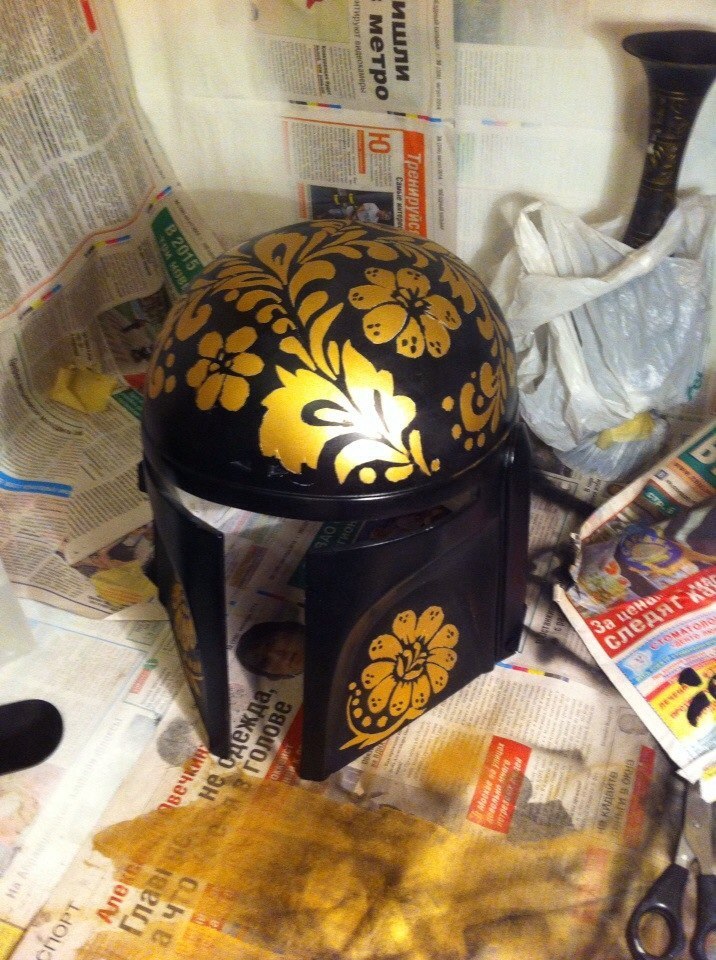

One of the first models of this helmet was made in special version for gift to a special guest at Comic-Con Russia 2014

Painting made fighter 501st Legion Russia - CT 18889
(Boost pictured below)

you know who it is
















Last edited by a moderator:
Thank you for your kind words )

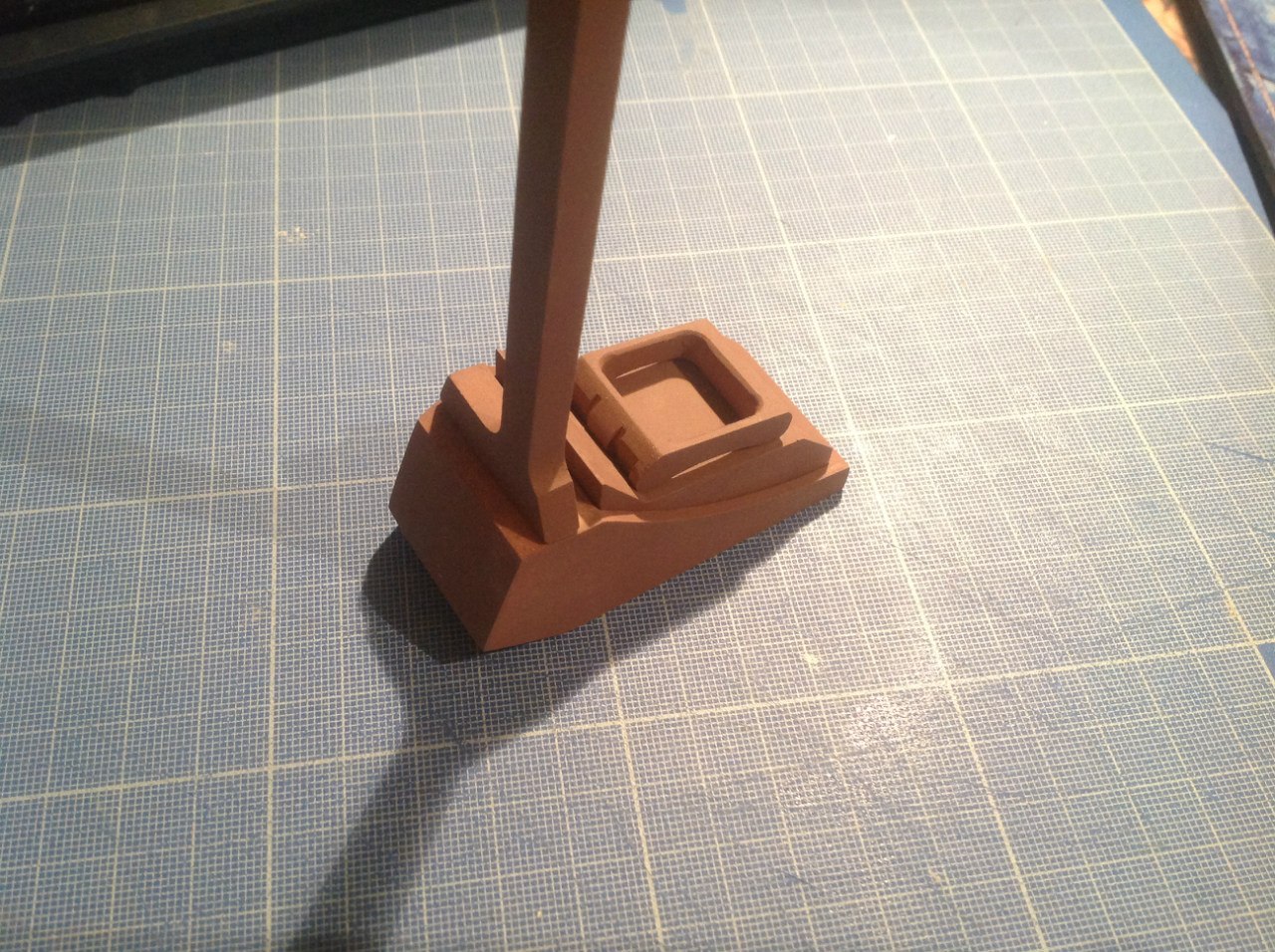

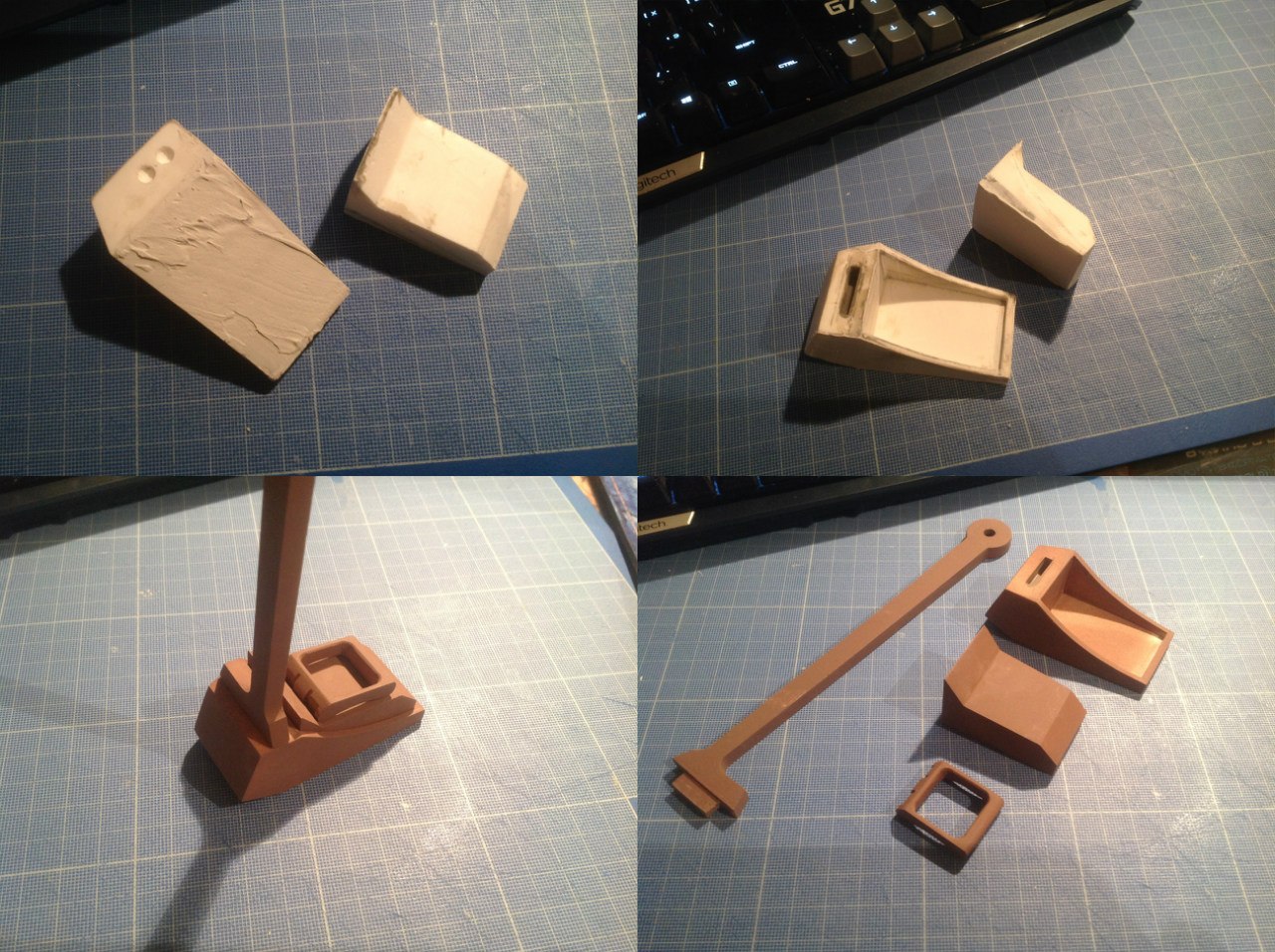

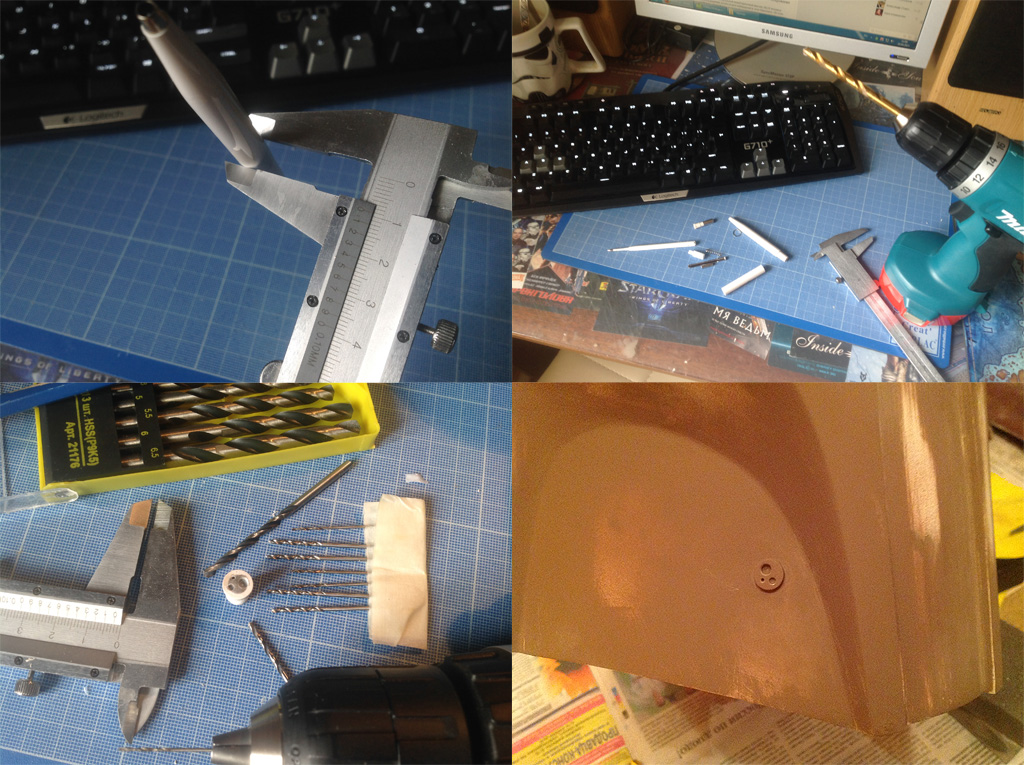

Marking parts of the helmet.

3-hole Borden connector is made of a pen.




Last edited by a moderator:
Please tell me where I can find detailed images of small parts from Polaroid?

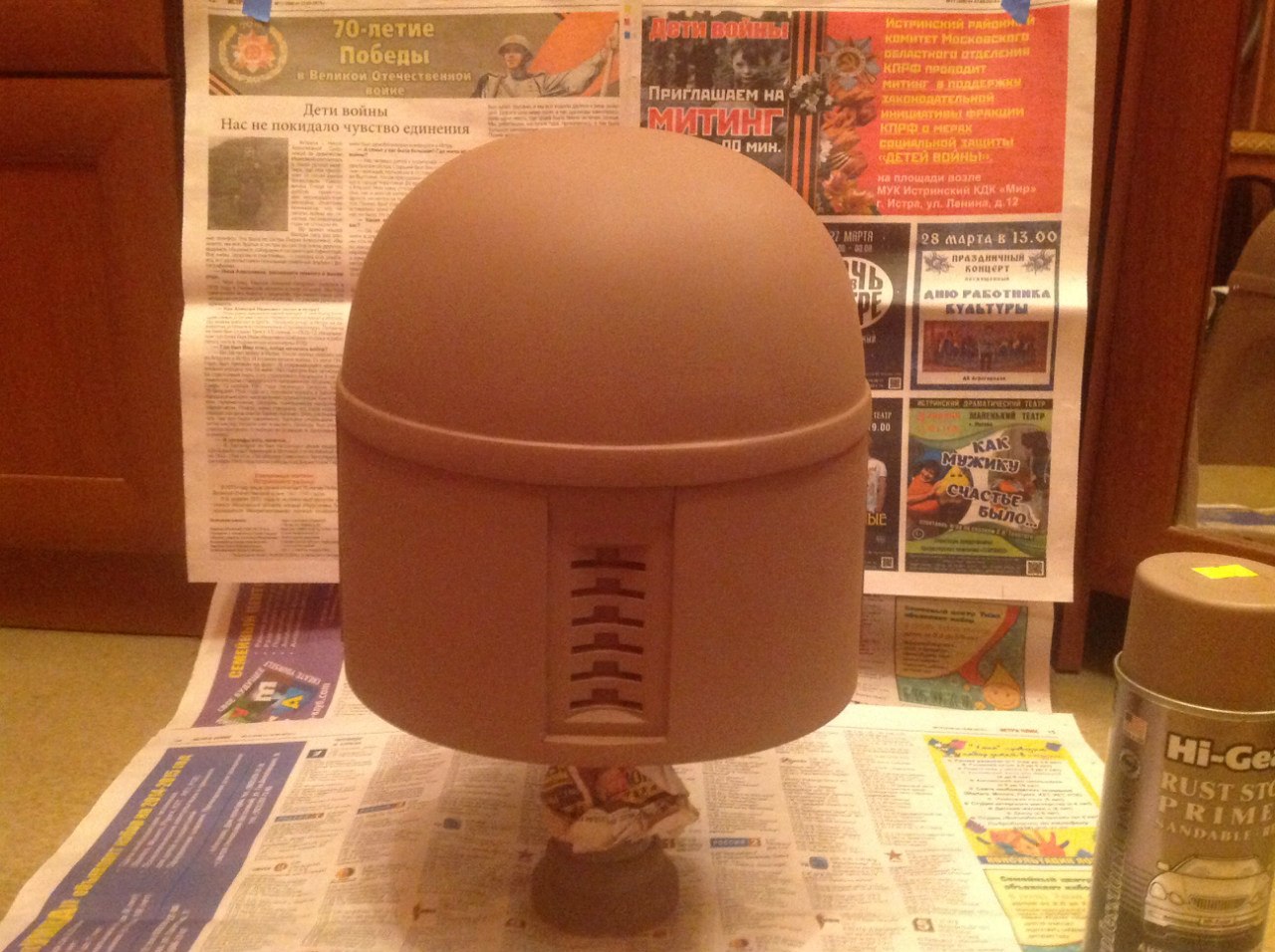

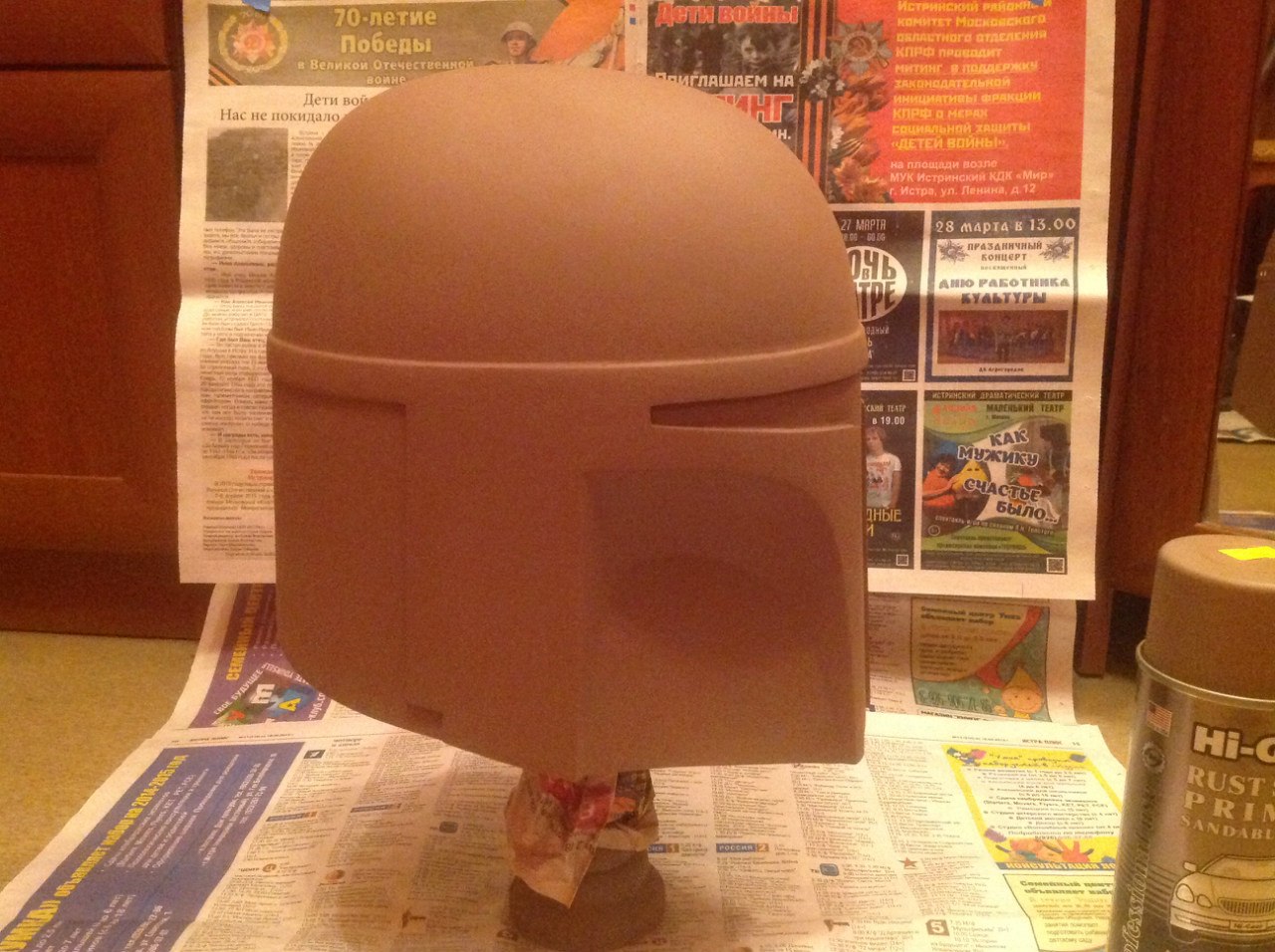

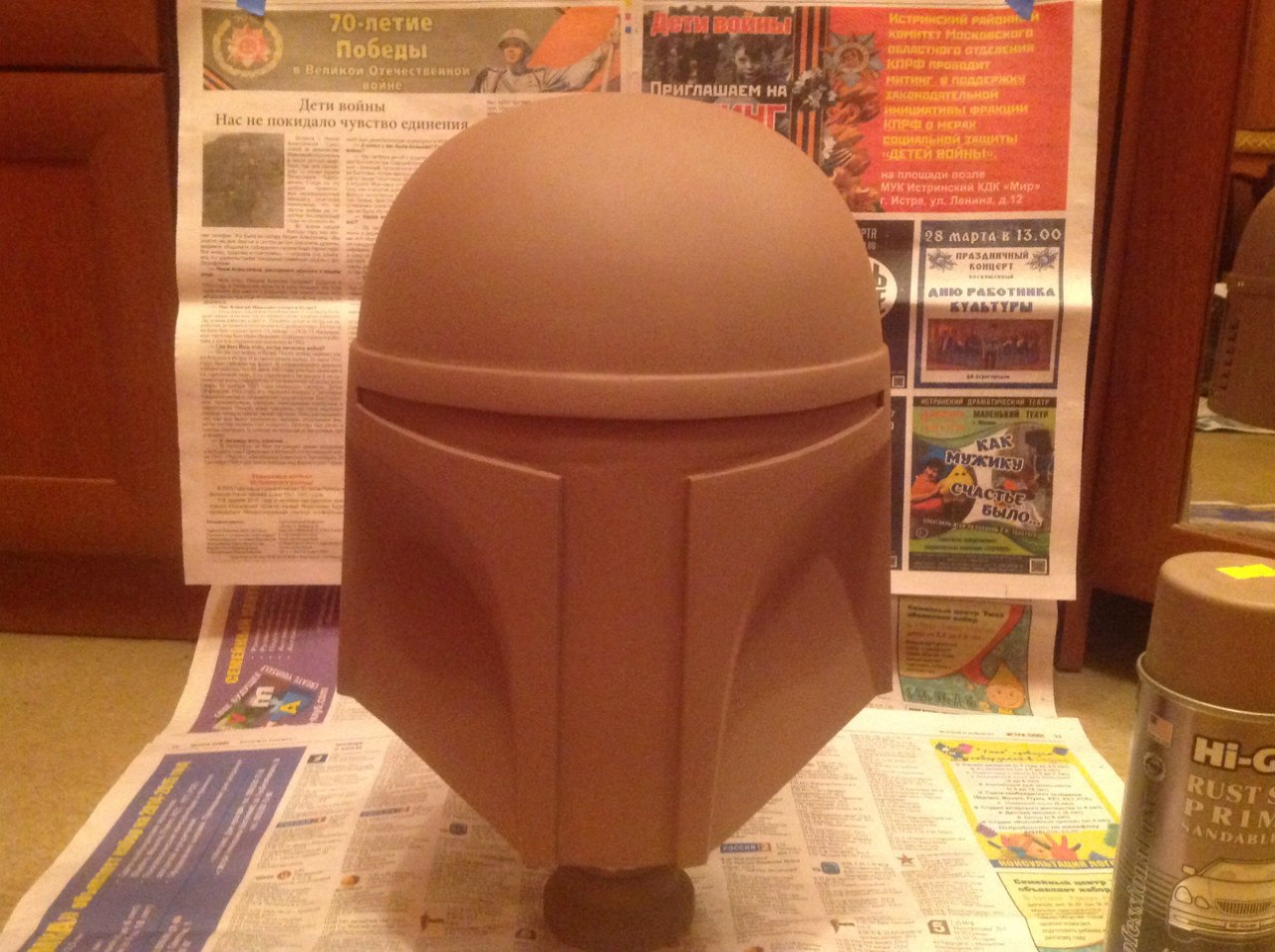

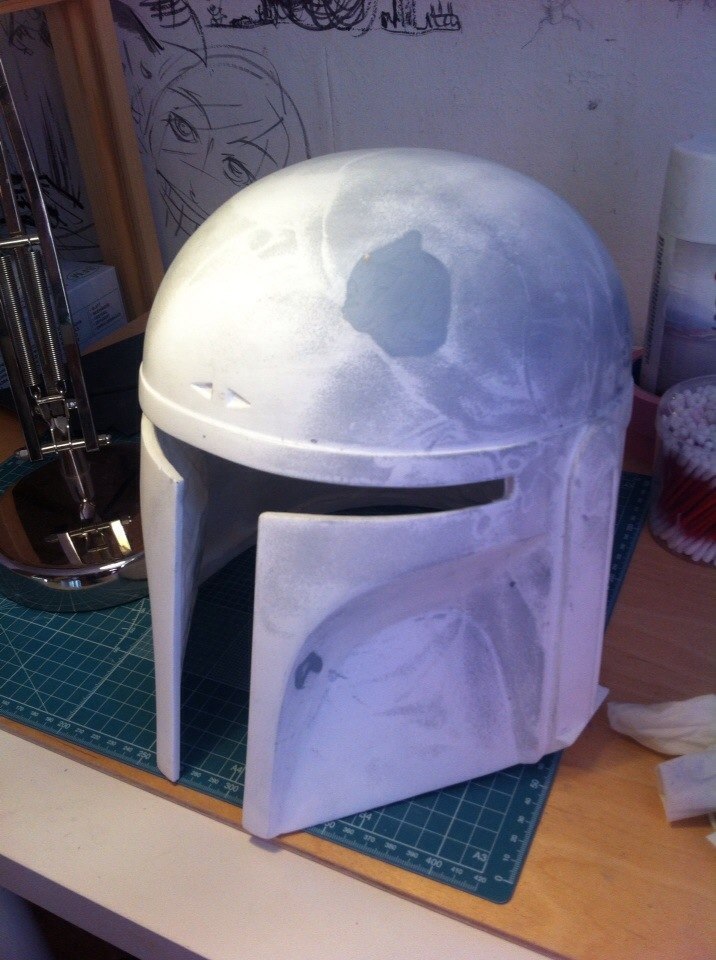

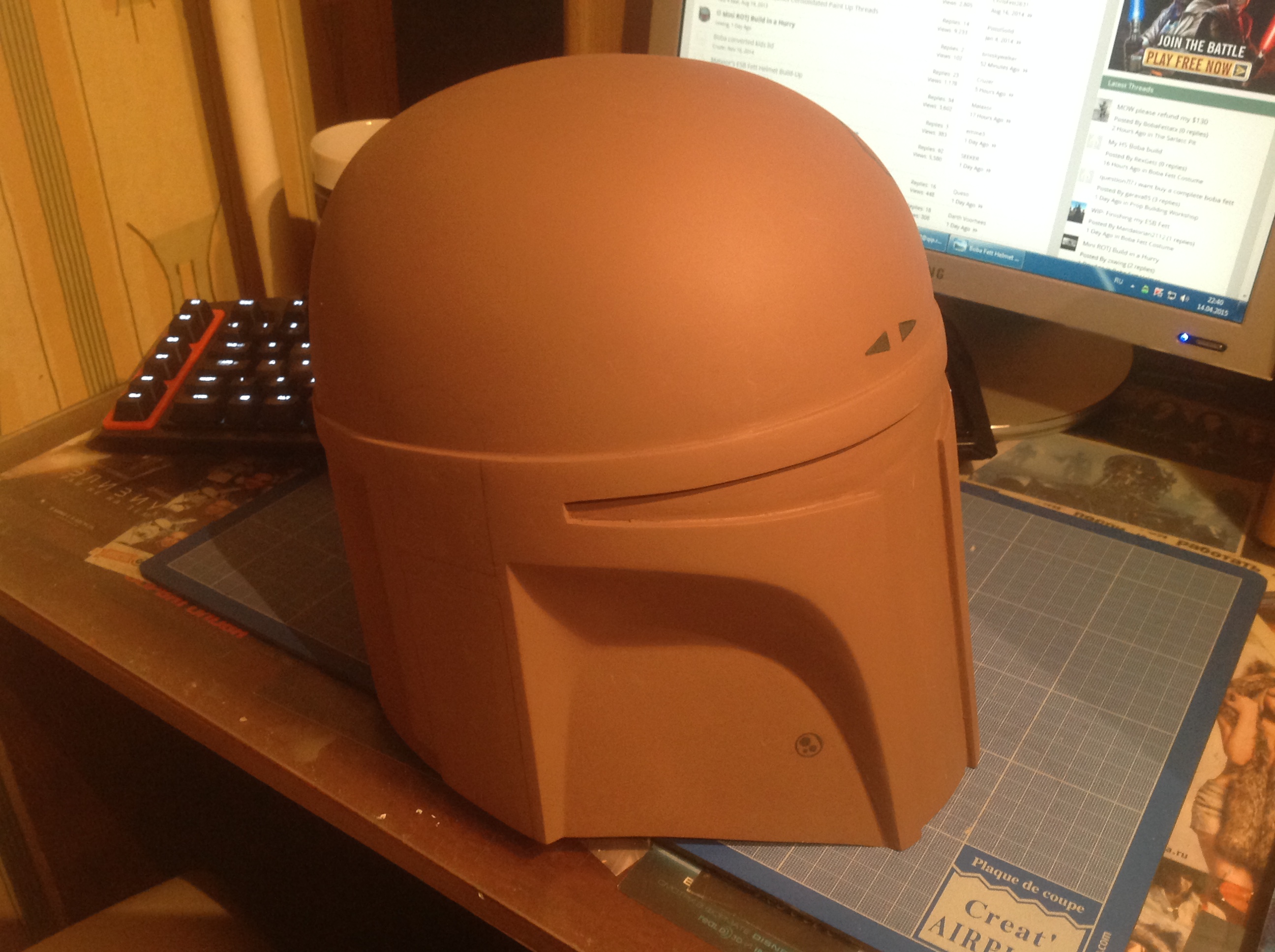

Progress...









Last edited by a moderator:
