Taking apart an original pulce 40
- Thread starter EvanDallas
- Start date
intwenothor
Well-Known Hunter

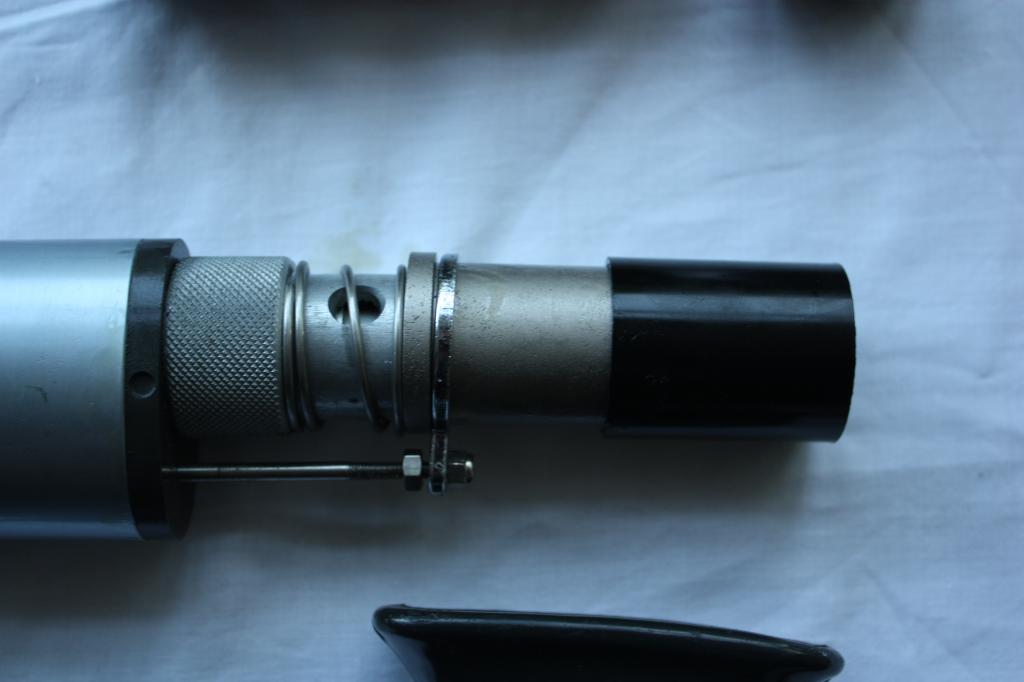

There's a thin rod with a little nut so unscrew that too then everything else slides off. Be careful here because there are some balls inside although you won't need them.

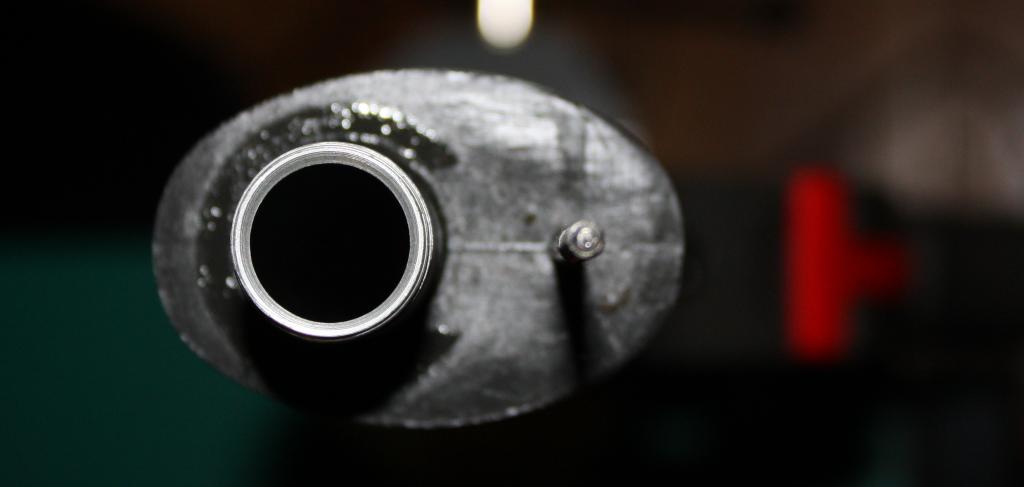

The plastic oval should slide out with a bit of effort.

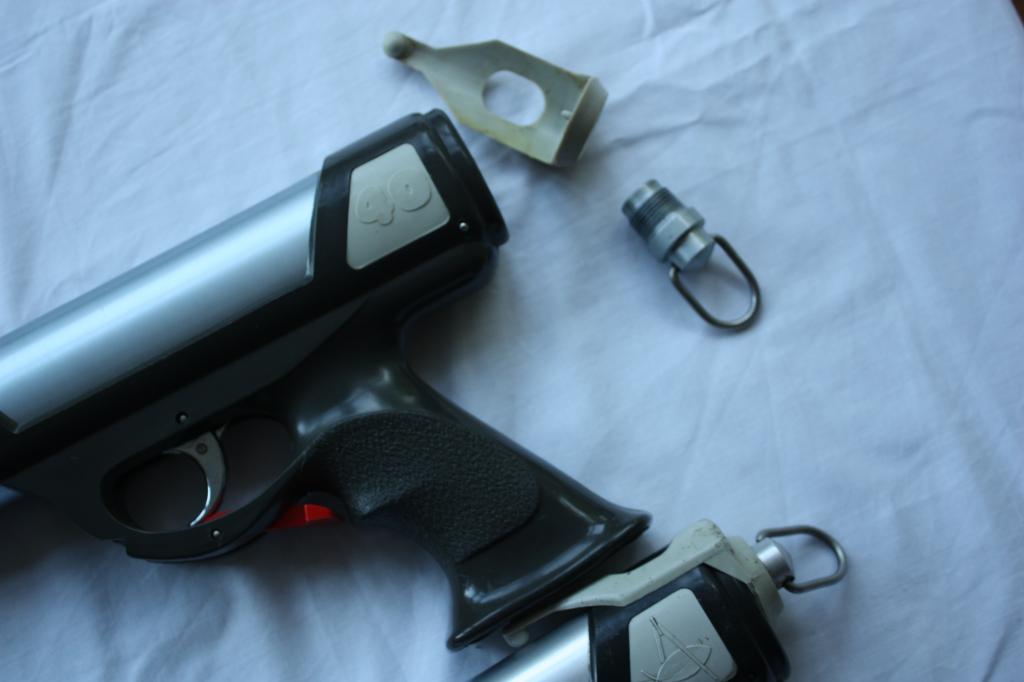

Unscrew the nob at the back with the d ring attached.
Knock the pins the body of the gun through with a tap and that will allow the tube to slide free.
Now you can see the inside mechanism and remove that long rod.
After that it all goes back together quite easily and the pins are just pushed back in to hold it all together.
The pin holding the red trigger clasp in place is removed by tapping through as well.
There will probably be a lot of gunk and grease inside so make sure you prepare for that.
Last edited:
EvanDallas
Hunter
Ohhhhhhh thank you!!!!
intwenothor
Well-Known Hunter
Added some pictures
EvanDallas
Hunter
You're a bucket of awesome sauce with a side of guacamole.
intwenothor
Well-Known Hunter
Actually mate I've uploaded those direct to the site rathet needlessly because I now see Art has found a way to migrate PB images without everyone forking out so there are further pin a thread I did a few years back comparing two variant Pulces and the Mojo replica. If you check my thread list you'll find it.
Peace.
Andy.
EvanDallas
Hunter
It took me a long time to find one and it really depends on how much you’re willing to spend.

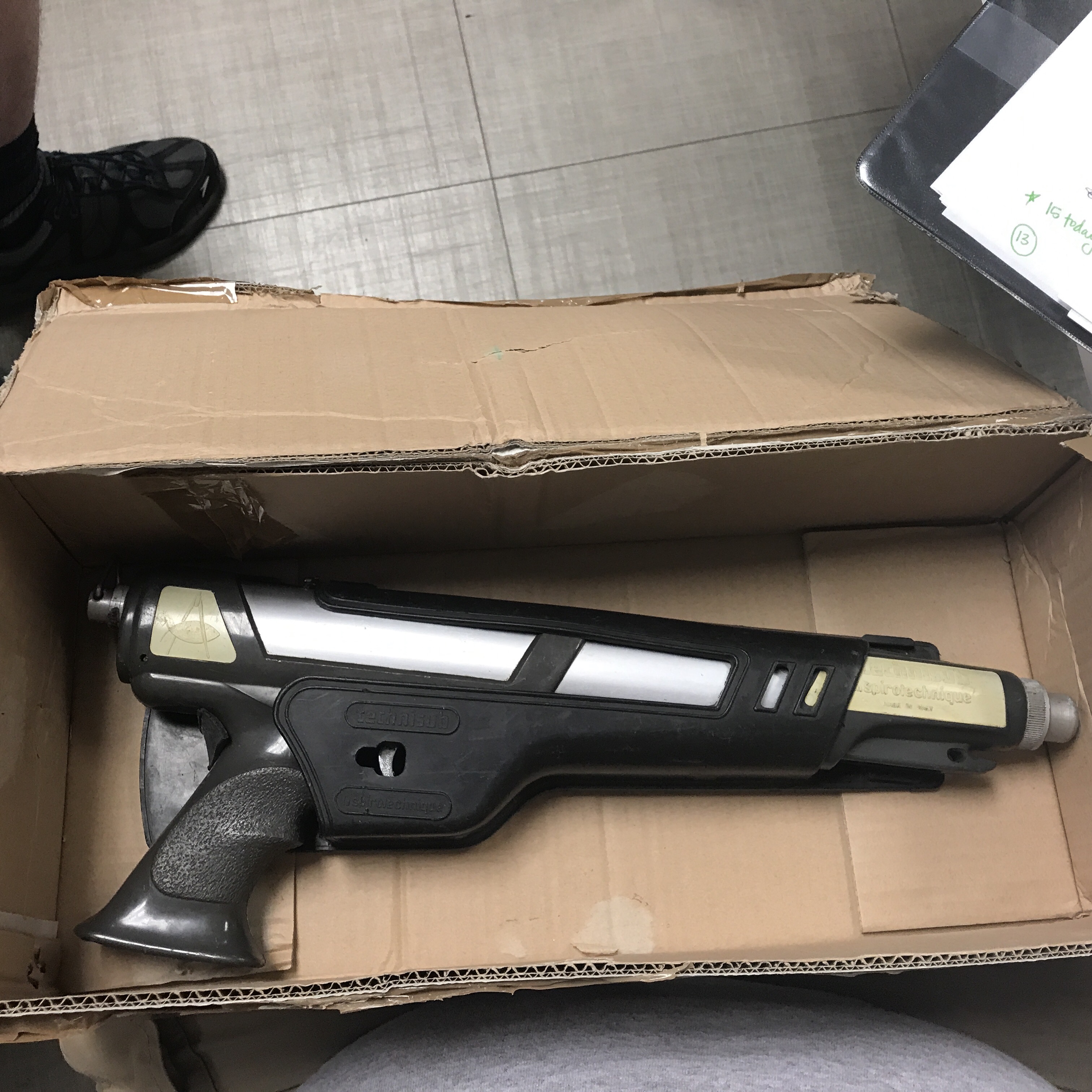

I just picked one up on eBay for $500. I honestly can't quite remember, but I believe the last one I bought went for around $800 or so. There is one on the RPF right now for $1000.
Now that I have two, I am finally willing to mod one out to ESB sidearm. Still trying to figure out that paint....
Now that I have two, I am finally willing to mod one out to ESB sidearm. Still trying to figure out that paint....
droidbait
Active Hunter
Lol I got outbidded by Art.
intwenothor
Well-Known Hunter
I think $500 is pretty reasonable for one of these
intwenothor
Well-Known Hunter
I'm still thinking poorly painted with Zinc chromate primer with the original colour showing through giving the grey tones.
Wait... what? Yellow?
intwenothor
Well-Known Hunter
The ruddy brown. The last iteration was 110601 but it was a period RR or R colour
I am still trying to work out how to make the trigger continue to work without the rod showing on the front end. I THINK I have it resolved... we will see.
So... found a solution.
I pulled the upper receiver apart (it is just pressure fit together) and the. Resinserted the back/barrel back into the grip. I took the trigger rod, cut it way down and retreaded it. I added a spring and a bit to the shortened rod which made the trigger work again. Then I just slid the aluminum body back in place and put the barrel on! Done! Trigger works with no external visible changes.
For anyone wondering, the threading is M3 x 0.50
PS. Please don’t critique how badly I bent the rod rethreading it.
I pulled the upper receiver apart (it is just pressure fit together) and the. Resinserted the back/barrel back into the grip. I took the trigger rod, cut it way down and retreaded it. I added a spring and a bit to the shortened rod which made the trigger work again. Then I just slid the aluminum body back in place and put the barrel on! Done! Trigger works with no external visible changes.
For anyone wondering, the threading is M3 x 0.50
PS. Please don’t critique how badly I bent the rod rethreading it.
superjedi
Sr Hunter
I used Floquil zinc chromate primer on my Mojo replica.
Stop telling and show some photos!
