Knee armor and ROTJ gauntlet build thread

[Lynn TXP 0369]

I got new armor in, so here is another thread. I posted this here so other Fett builders can have the help in the future.

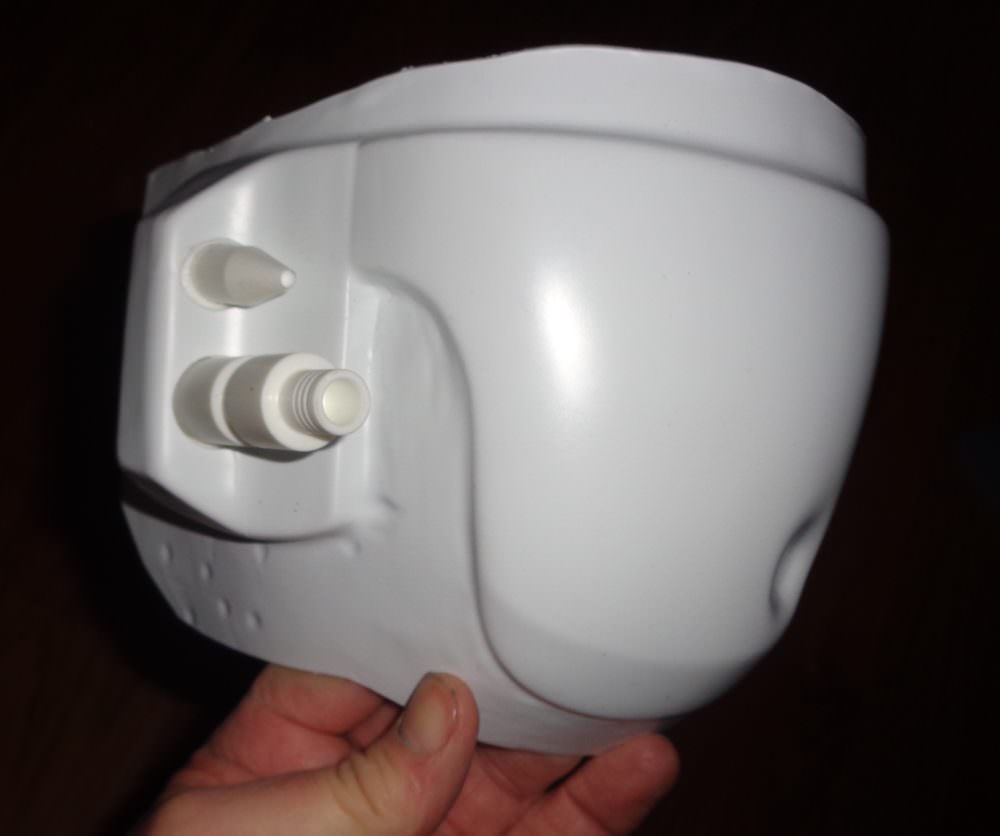

WastedFett knee armor, same maker as my FPH2 helmet

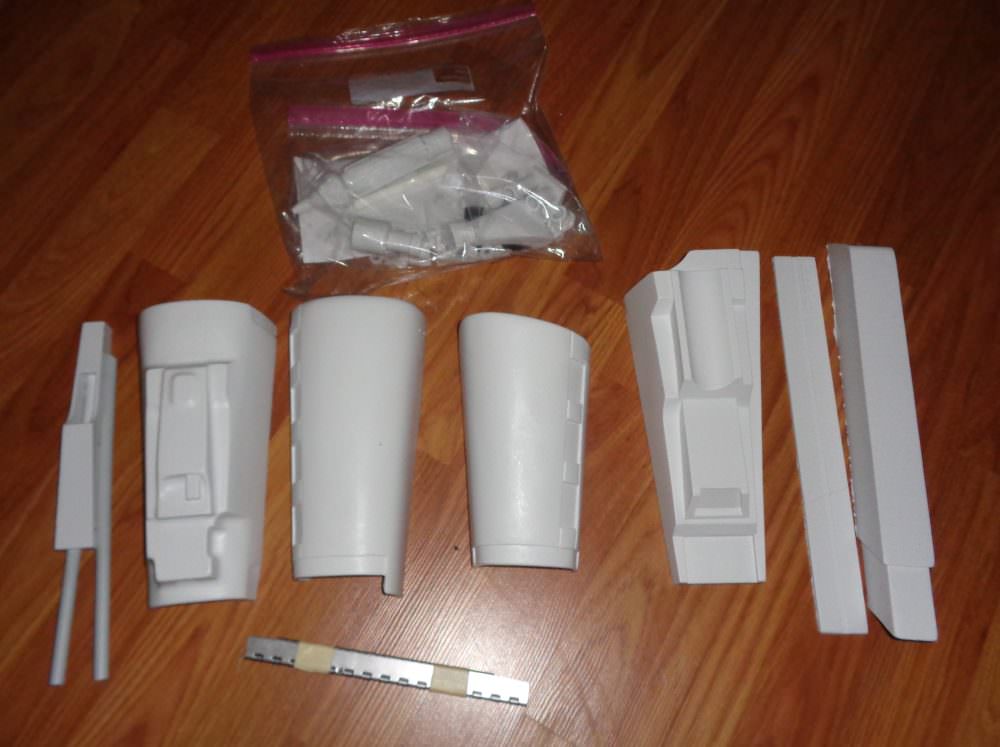

Man of War studios ROTJ gauntlets.

Stay tuned for build..
Lynn



[WhyItMatterz]

Cant wait for some update pics



[Lynn TXP 0369]

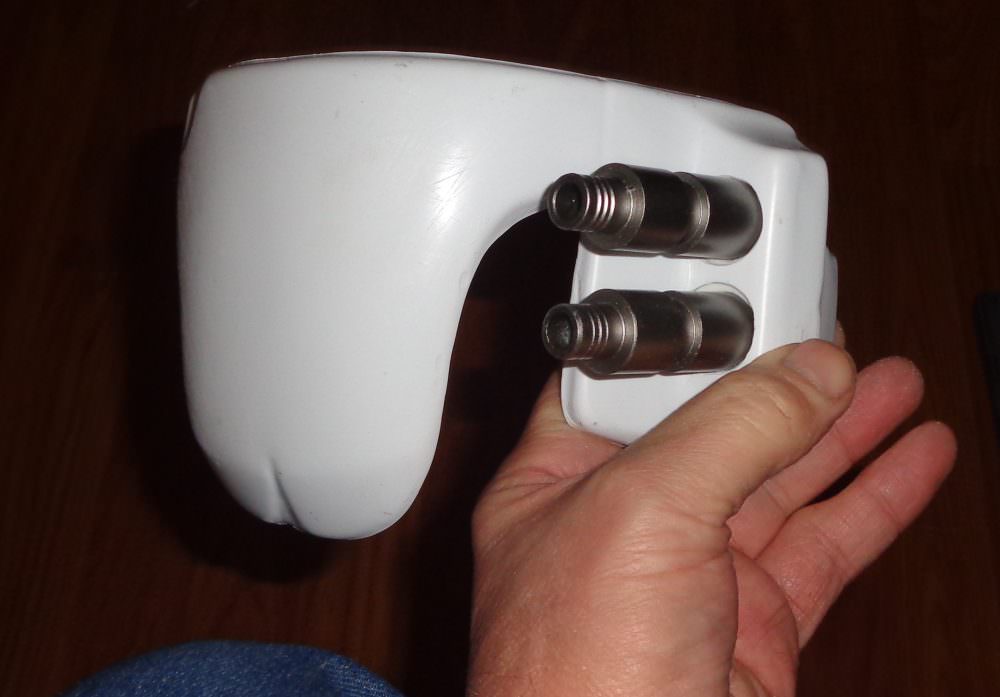

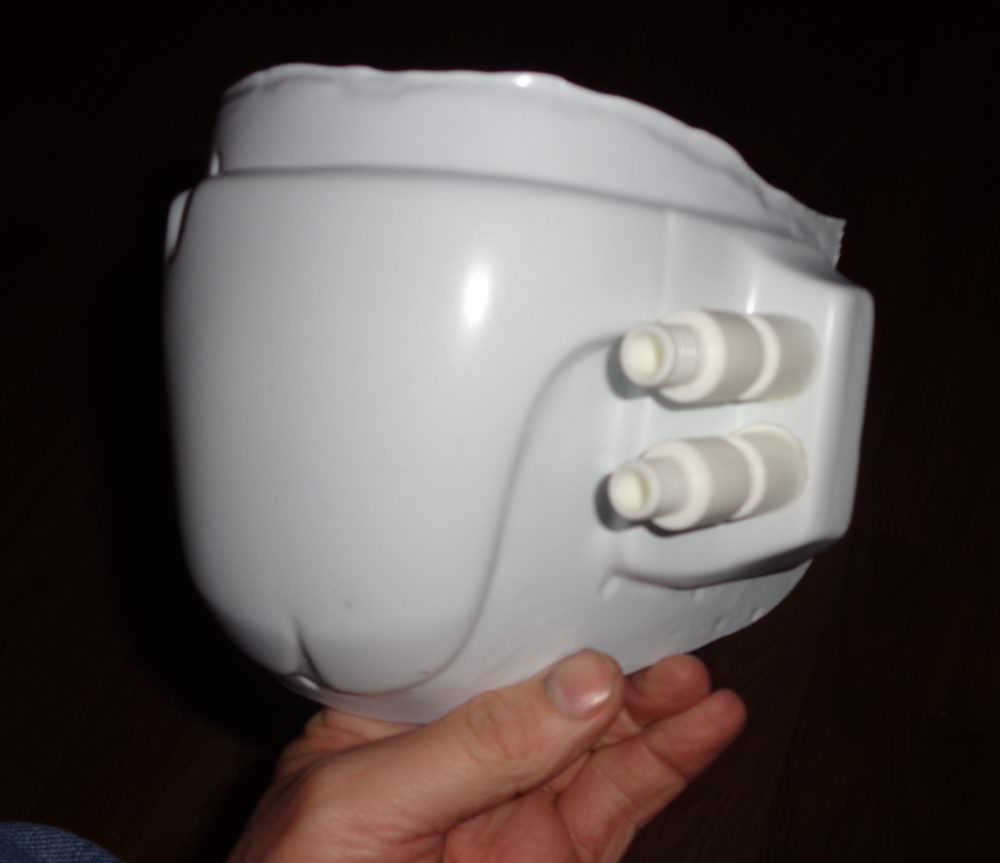

Drilled holes for knees while still untrimmed to give it a more stable platform to drill holes with hole saw.

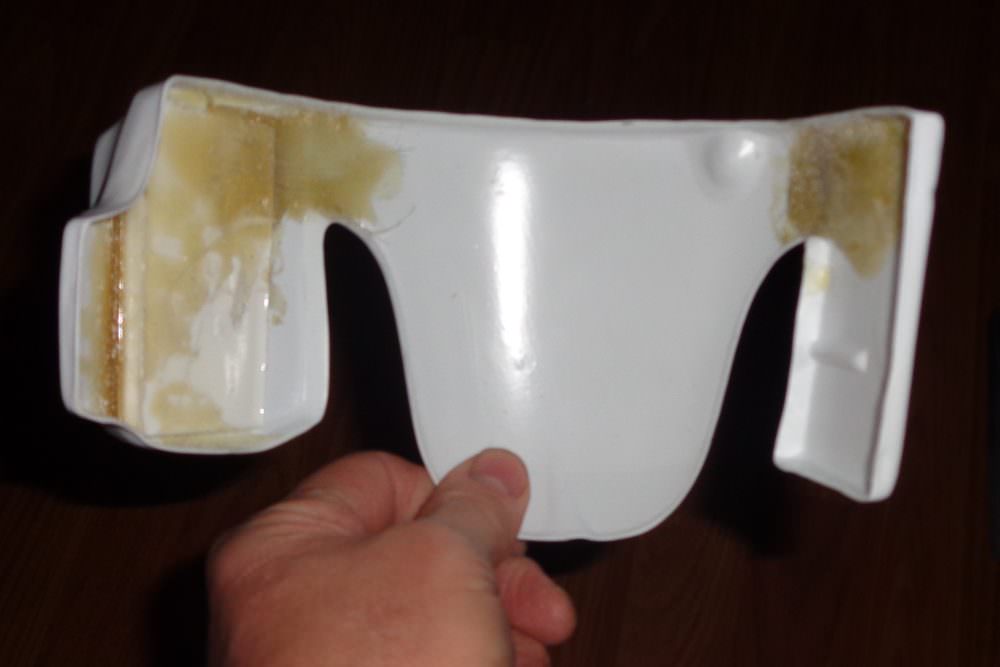

Fiber glassed in the the weak area of the knee and poured in resin around the cast block dart holder while the knee was untrimmed. I trimmed the knee after the resin all dried.

Lynn



[WhyItMatterz]

Looking good!



[Lynn TXP 0369]

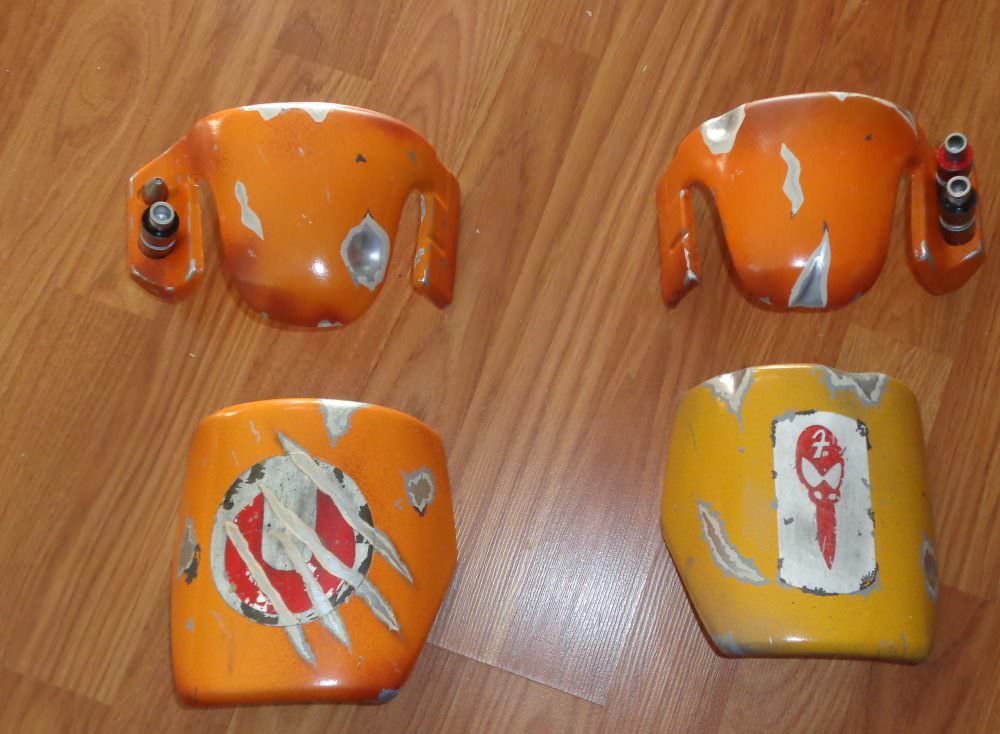

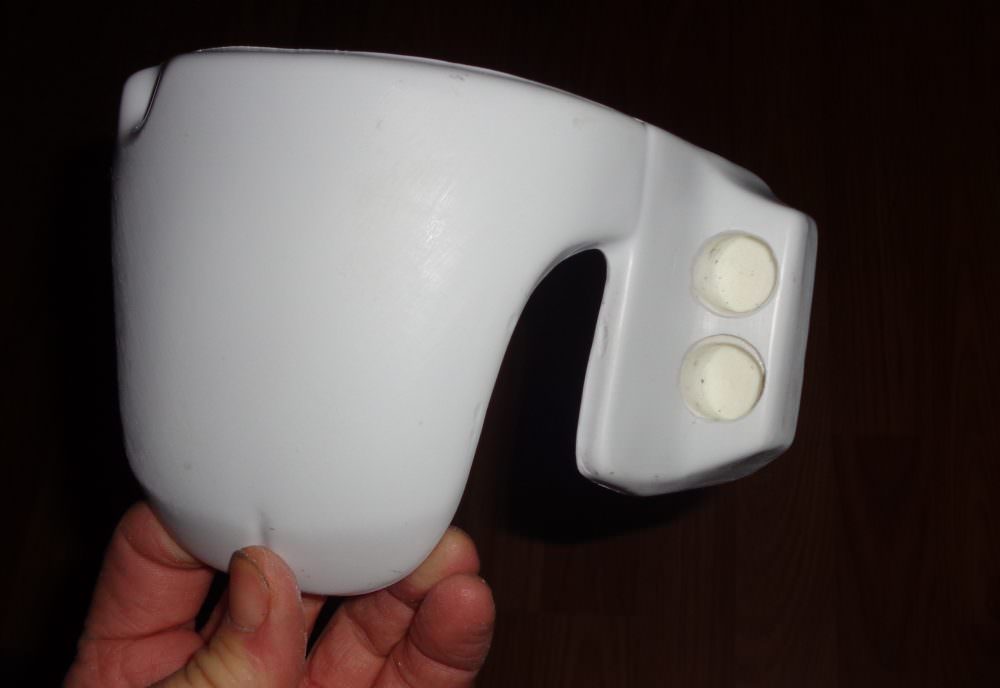

Knee armor done, I just gotta clear it and add the straps. I repainted the shoulder armor to match the paint style of the knees. I decided to add the pre pro style sigil to my shoulder armor for the Mandalorian homage.

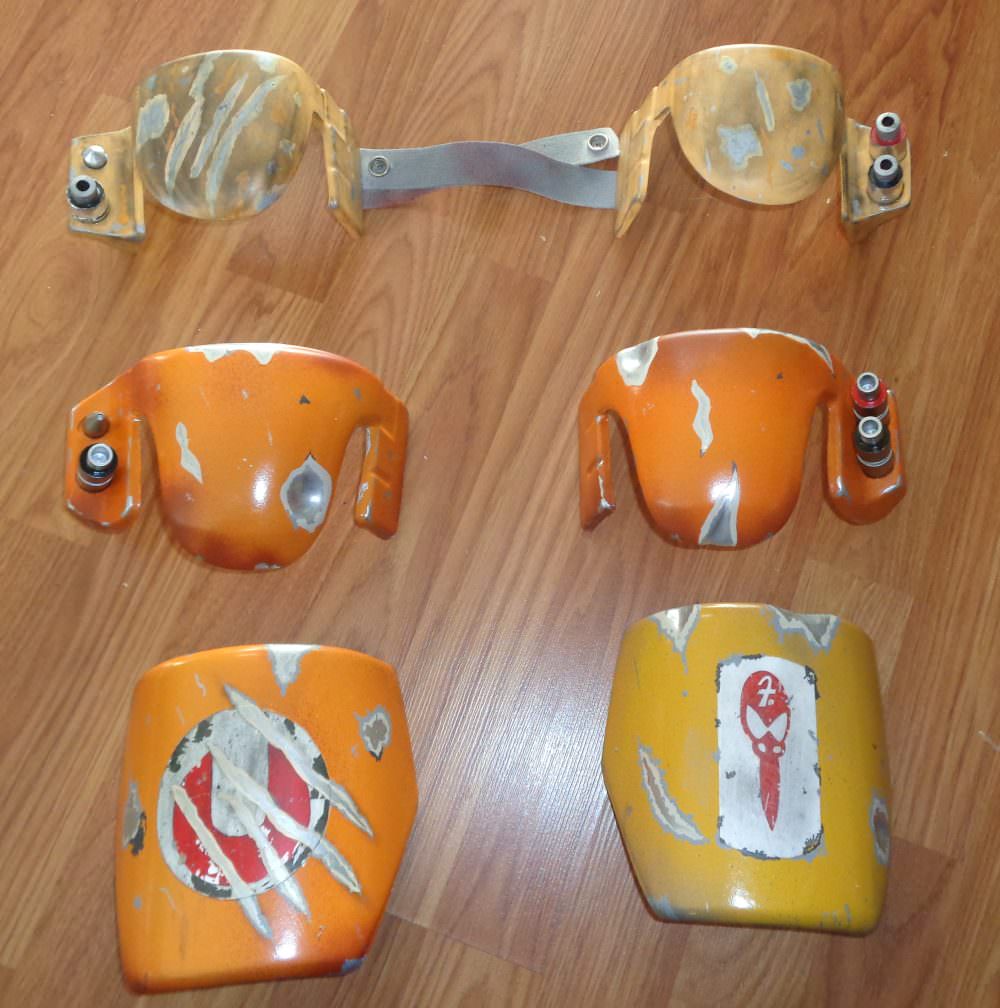

Old knees compared to new ones.

Lynn



[Lynn TXP 0369]

Started the gauntlets. I got the hinges installed and the bottoms fiberglassed.

Being a custom Mandalorian I can take a little bit of leeway to the suit as far as build. I decided to rivet the hinges to the gauntlets them selves. Now a Boba Fett could possibly do the same by countersinking the rivets and Bondoing over them and hiding them.

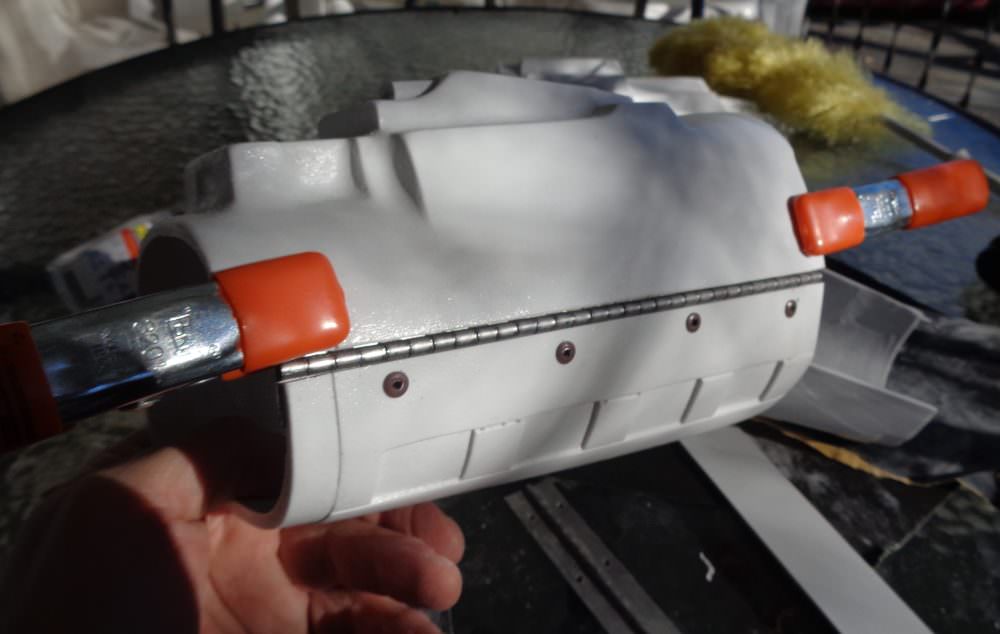

Holes drilled for hinges.

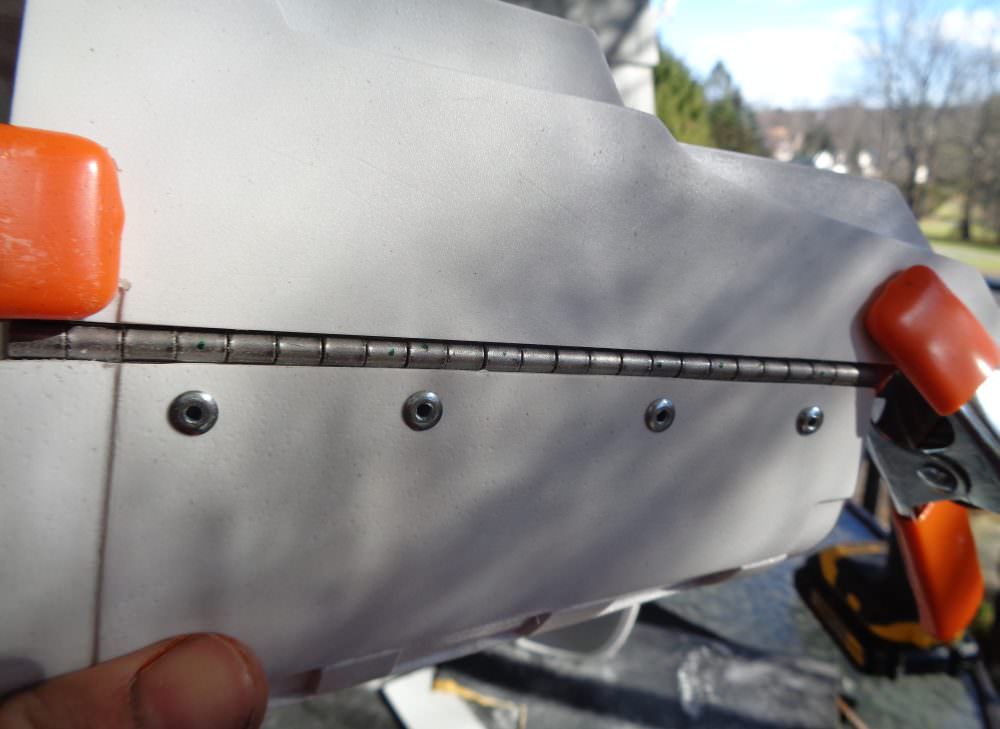

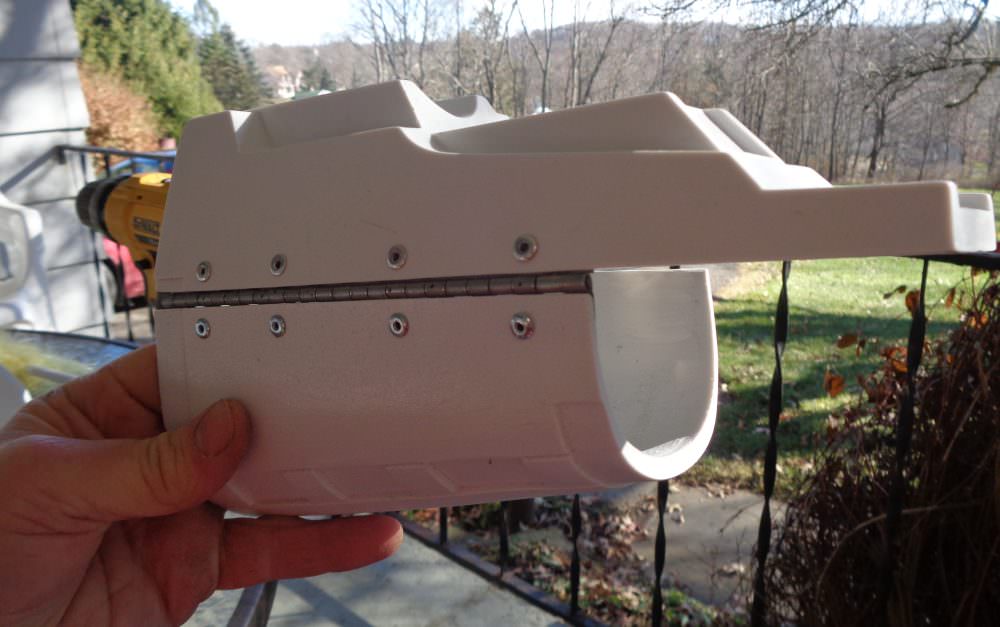

Riveted bottoms.

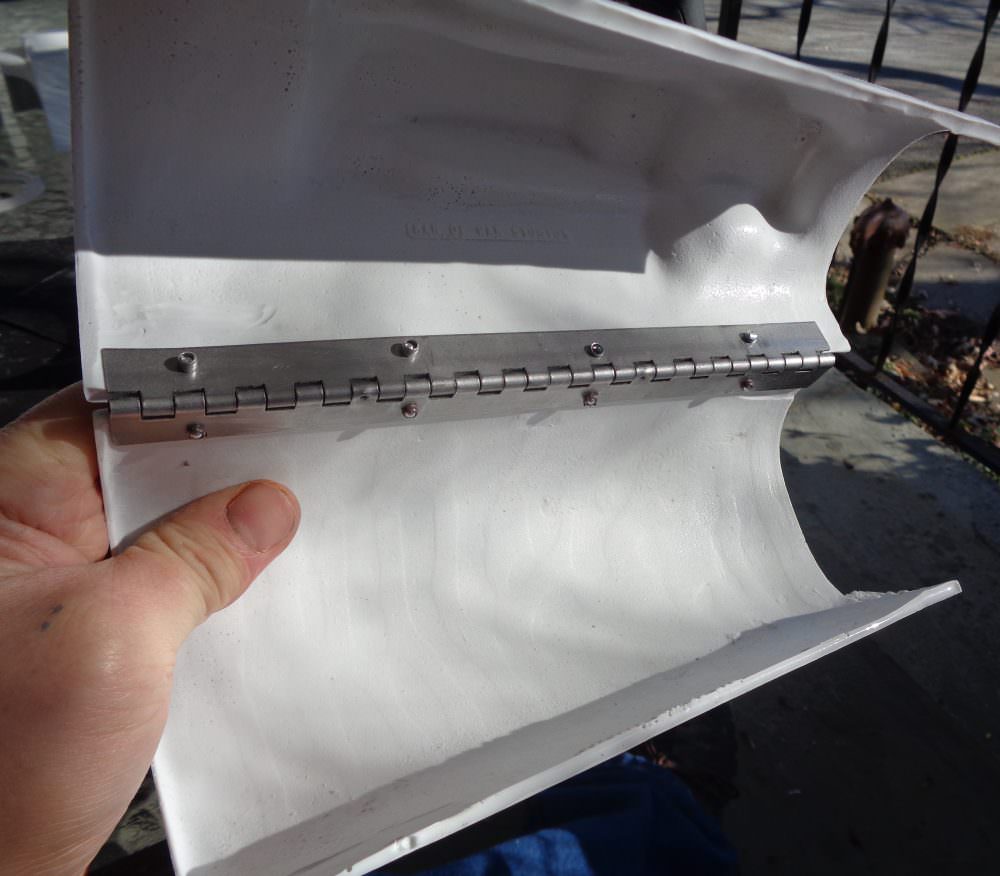

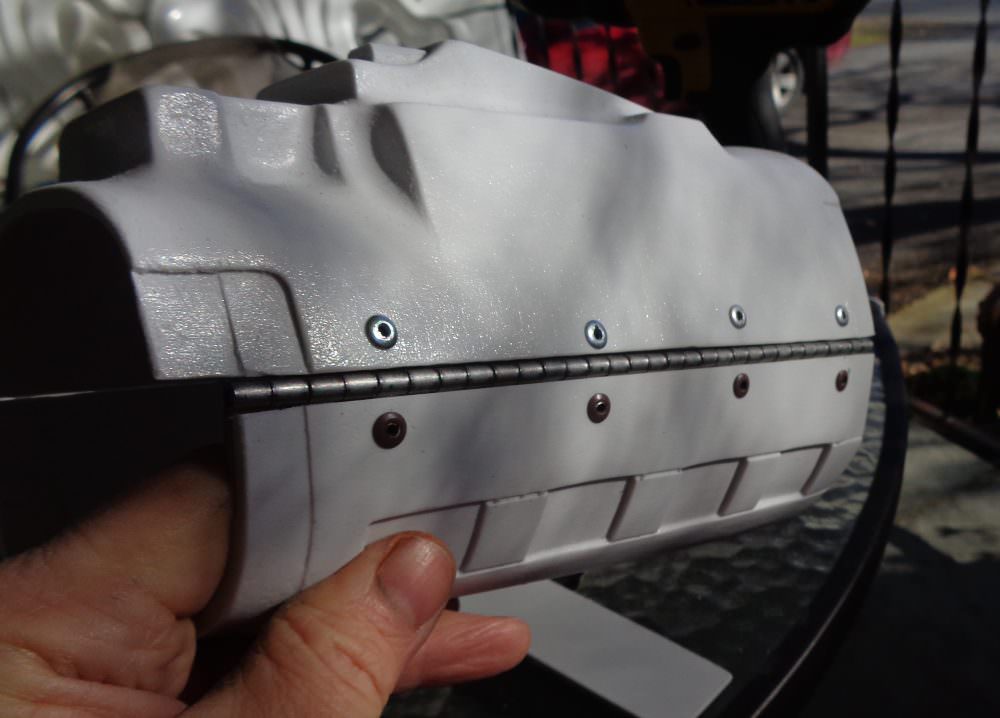

Inside. I did have to use 1/4" rivets on some holes.

Done.

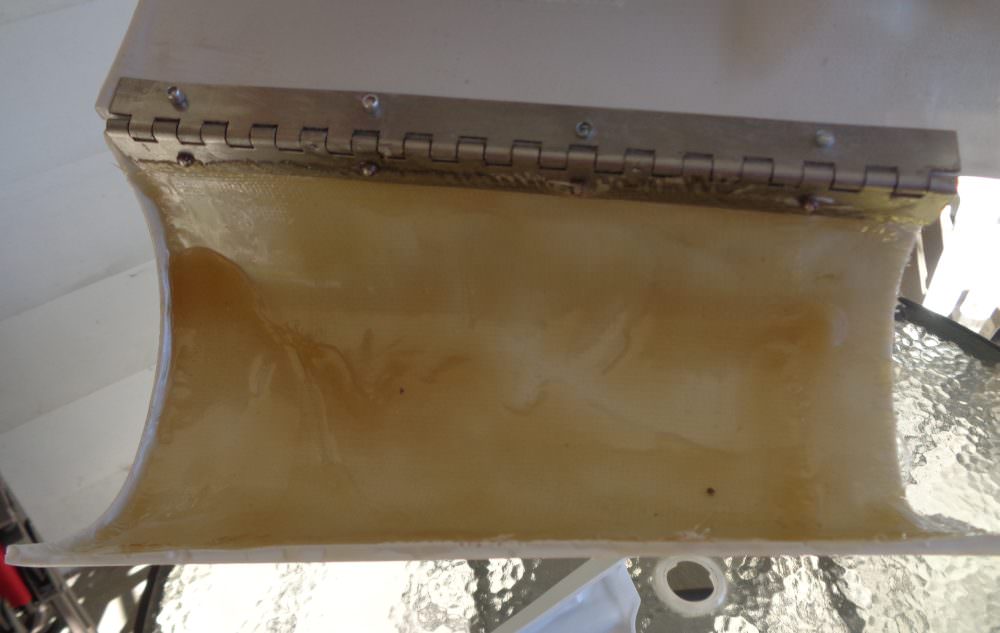

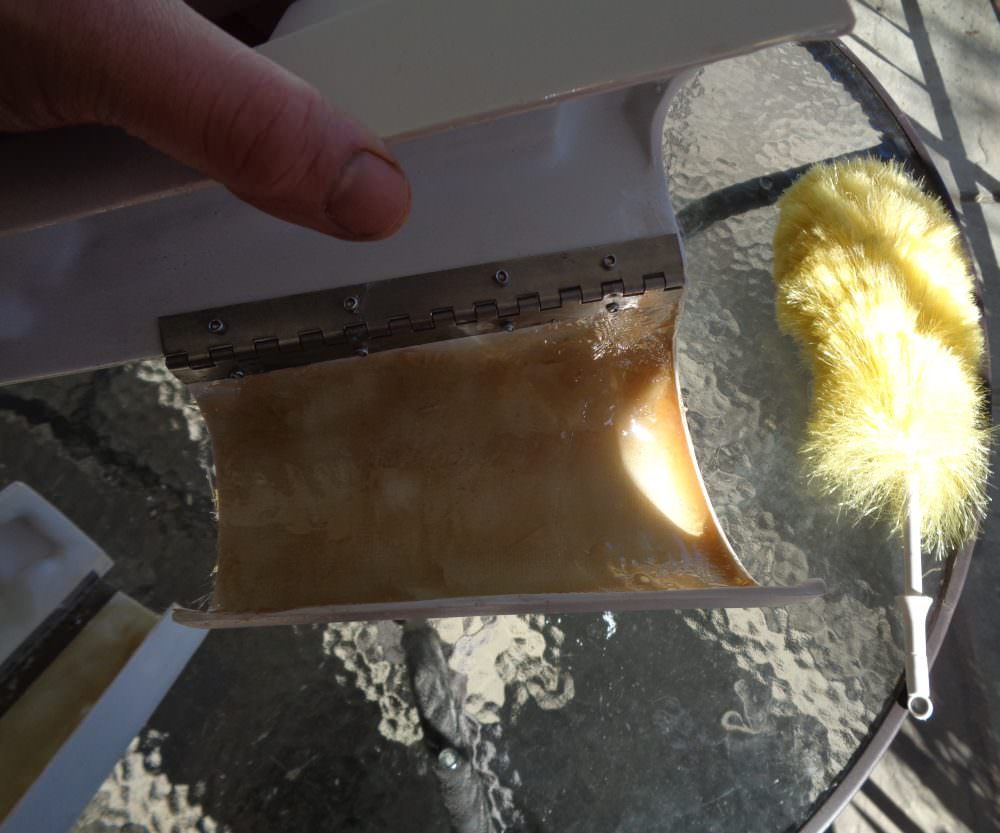

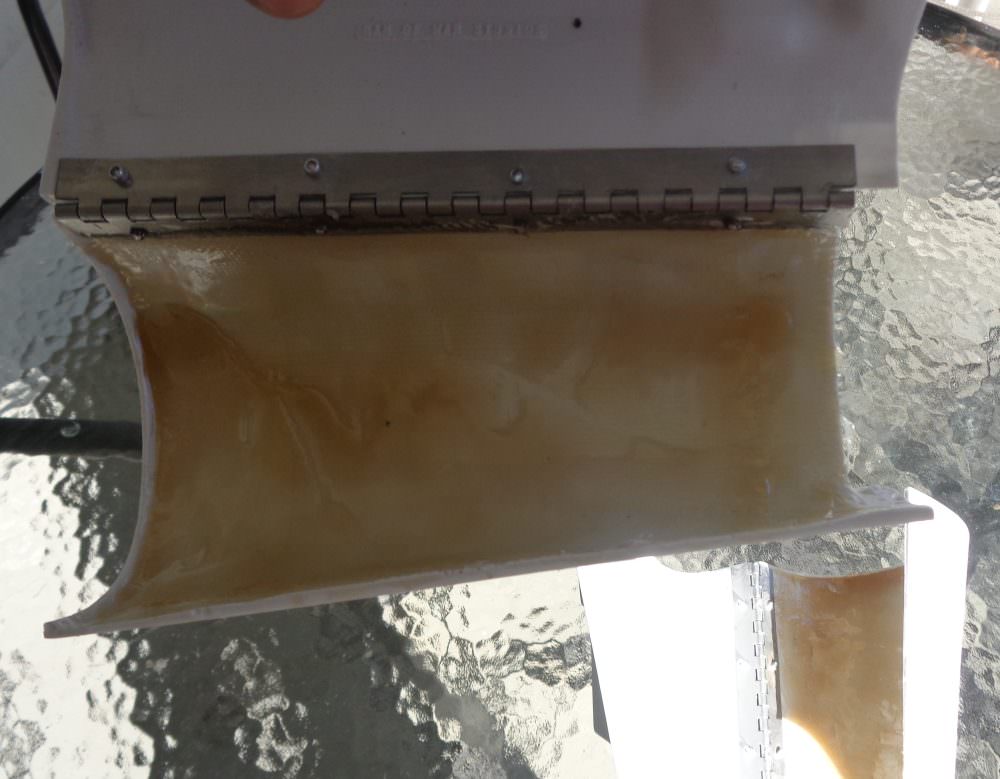

Bottoms fiber glassed. I didn't feel the need to fiberglass the tops, but I did feel the need to fiberglass the bottoms as they were so deep and had a good wide span to them.

Lynn



[WhyItMatterz]

Love the look of those new knees and shoulders



[Lynn TXP 0369]

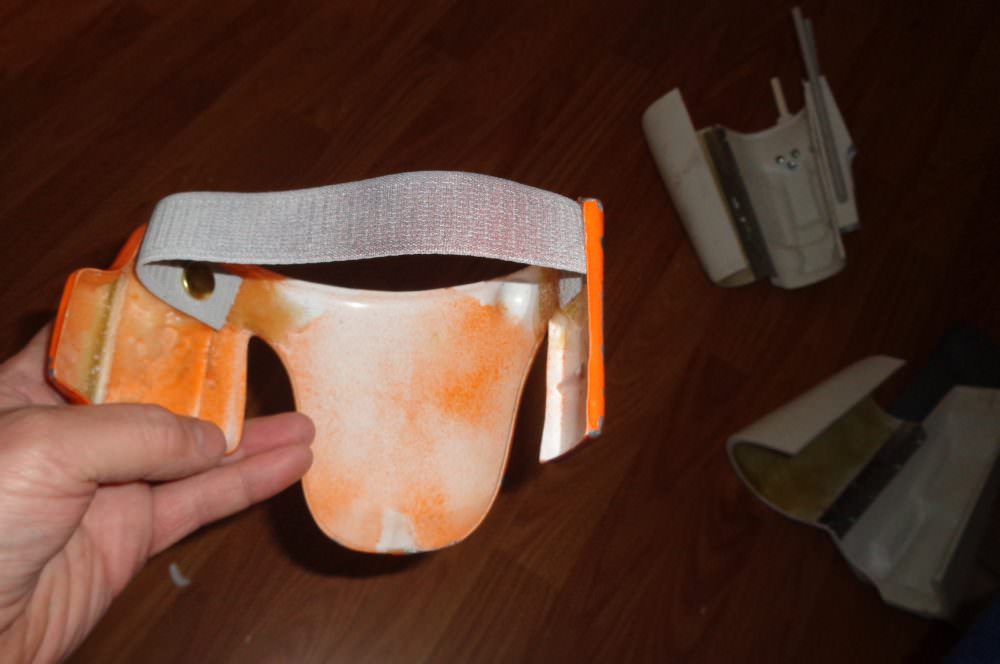

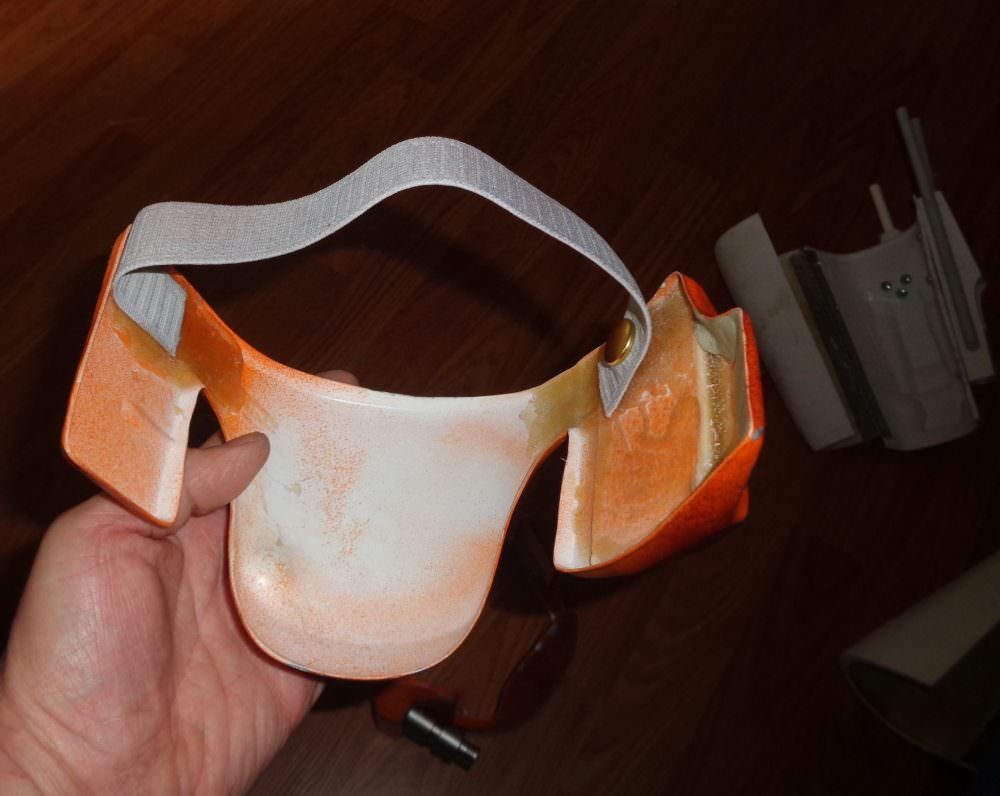

Straps are on.

I just gotta some 2" sticky Velcro tomorrow for the knees fronts to hold on to the suit.
Lynn



[Lynn TXP 0369]

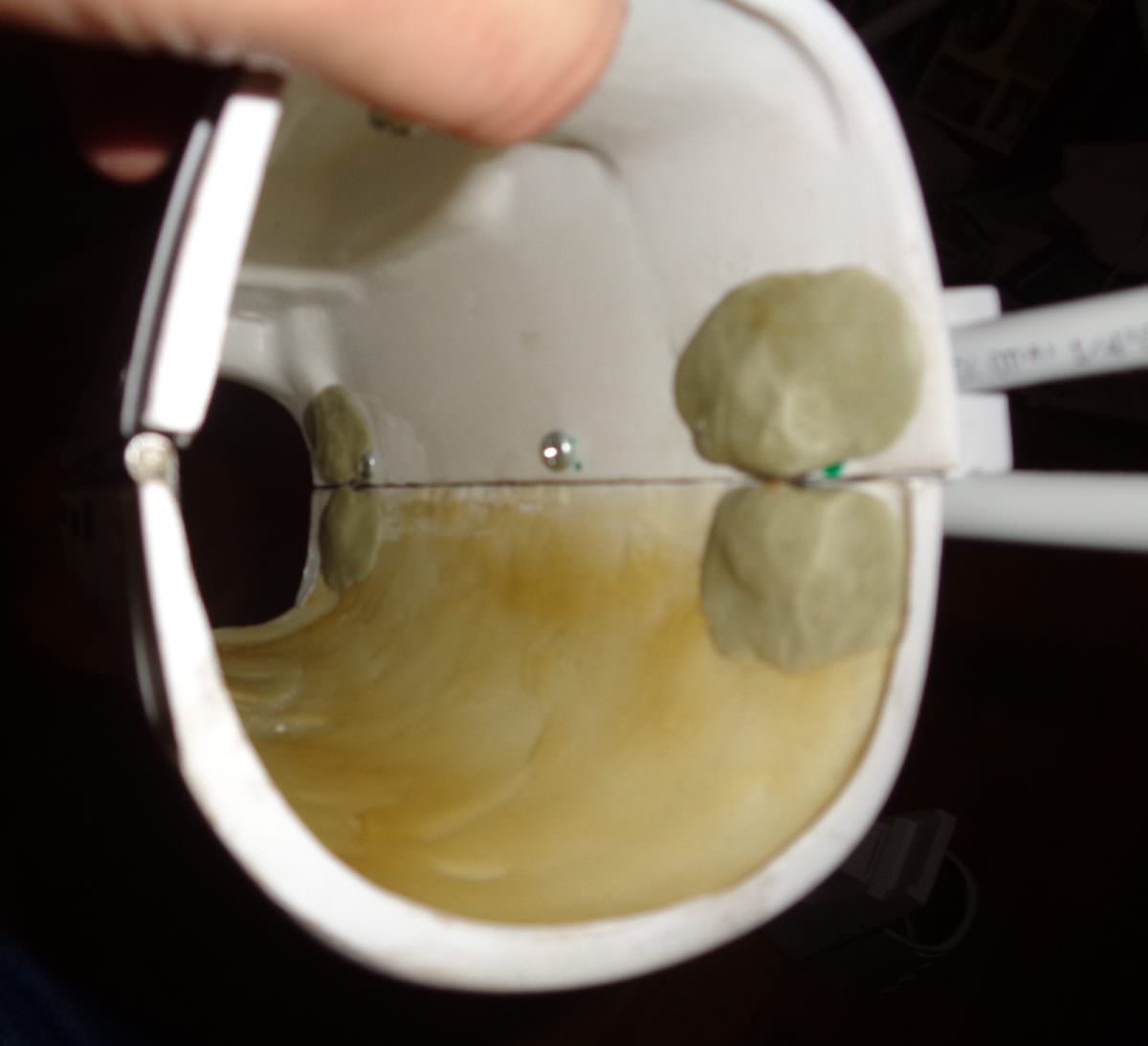

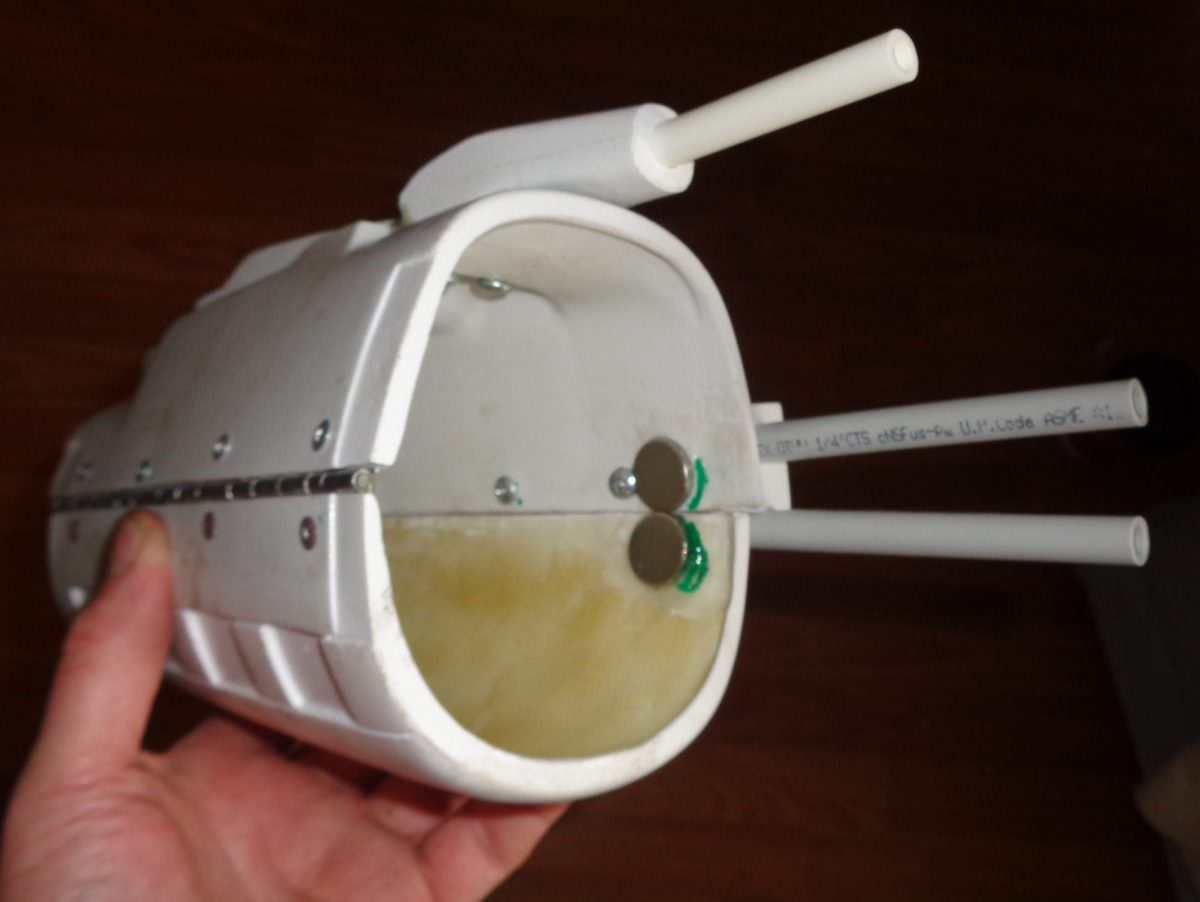

Gauntlet closer's done. I used 3/4" rare earth magnets and epoxied them to the gauntlet shells and then I put Ave's Apoxie sculpt over them to make sure they won't ever pull off. These hold the shells together strong. I only had enough magnets to do one side on the left shell, but it is holding together strong. I may get more magnets just to make sure it doesn't bounce open, though I doubt it will now.

Right shell is almost done. I gotta start to drill holes for greeblies.

Lynn



[hvacdon]

Nice....Looking Good !!



[Lynn TXP 0369]

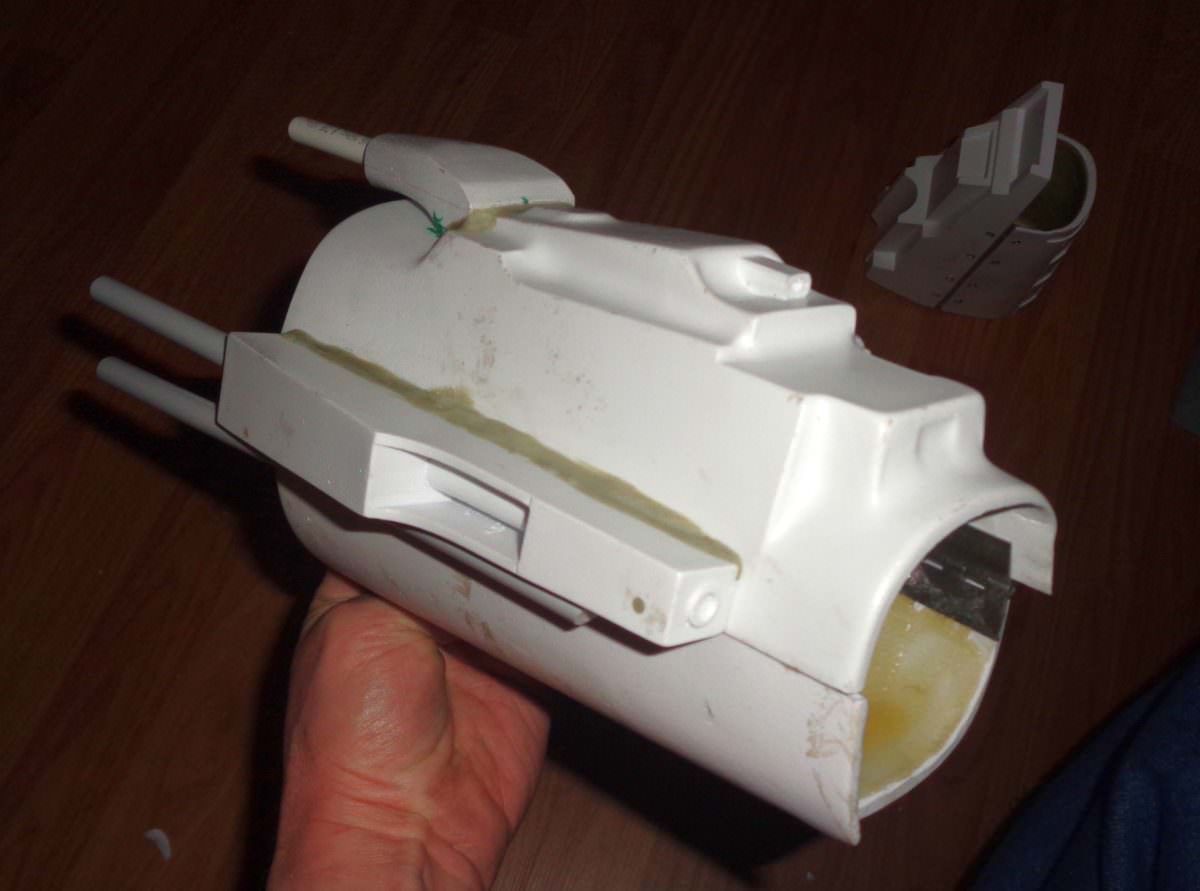

Greeblie's added to left gauntlet.

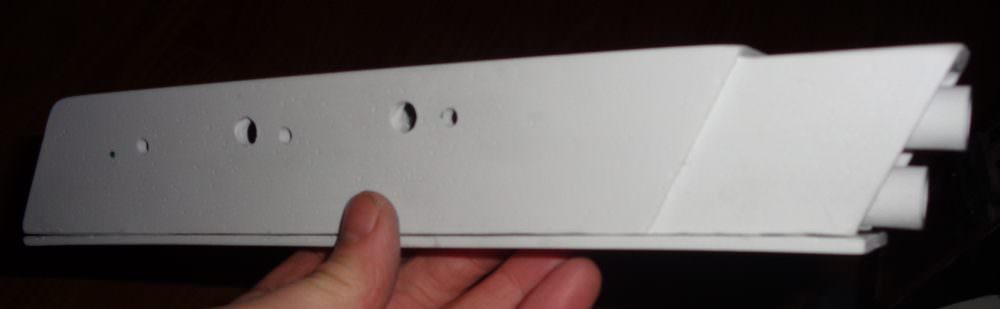

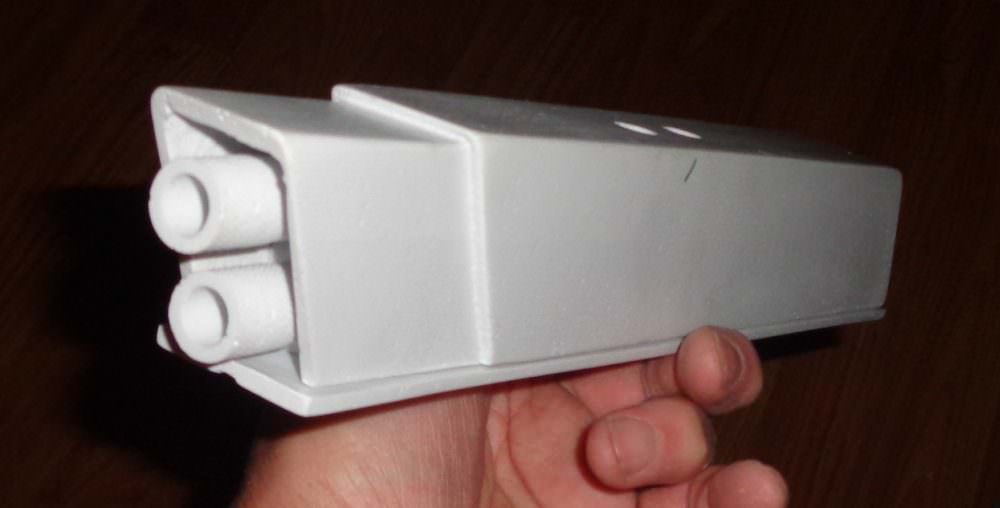

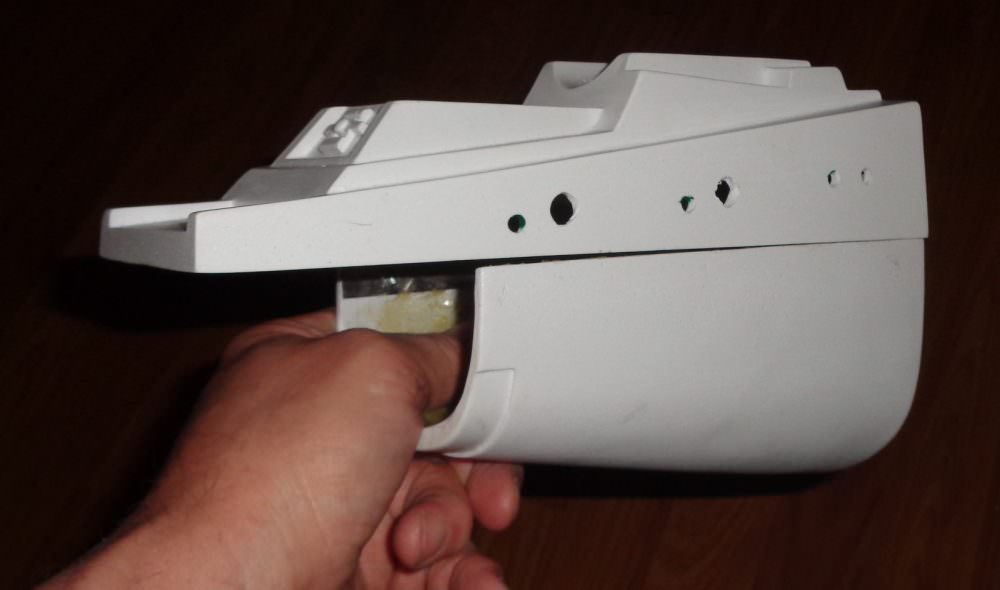

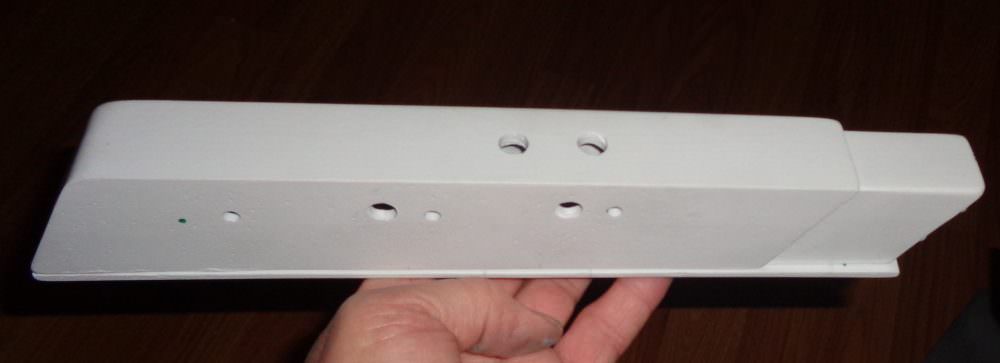

Flamethrower holes drilled for mounting to gauntlet, switches, and wires.

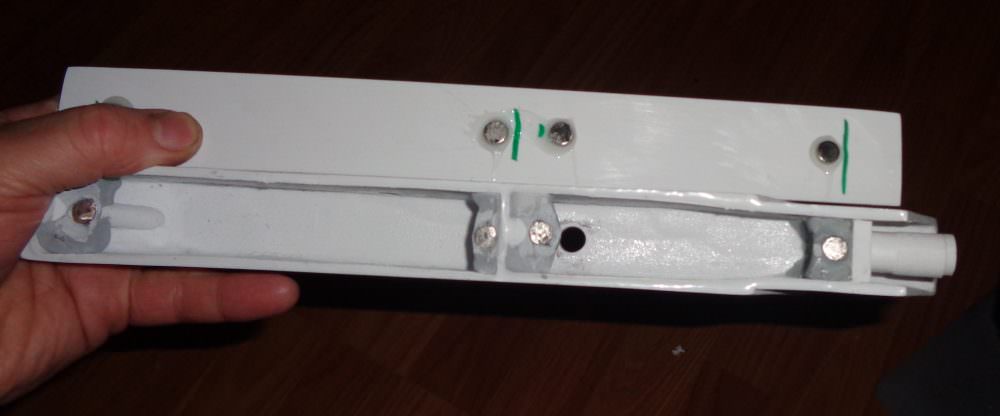

Magnets attached for easy bottom removal of flame thrower plate for easy access if I put electronics in there.

Lynn



[hvacdon]

Great looking job on the gaunt !! I like your magnets on the flame thrower !! What size magnets are you using ?



[Lynn TXP 0369]

Thanks!! For the little ones, I'm using 8mm x 3mm Super Magnets that I got from my local True Value store. I'm not sure what size the big ones are, but I had to special order those through the store.
Lynn.



[Lynn TXP 0369]

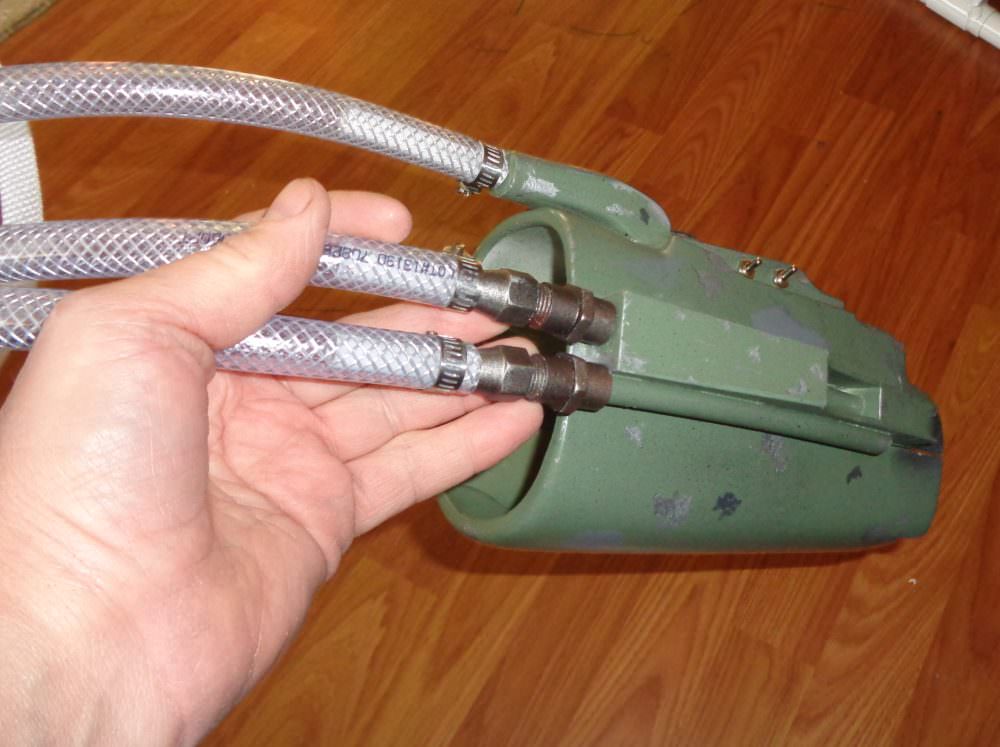

Gauntlets are slowly getting here. The new hose is bigger and stiffer then the old hose and is causing problems of the gauntlet opening up when under pressure. So I got to add some Velcro to help keep them closed. I also made a new hose restraint system under the sleeve to help hold hoses in place and it works good so far under tests.

I got metal darts from Shapeways coming this week. I hope to add two LEDS to the right gauntlet as well.
Lynn



[Lynn TXP 0369]

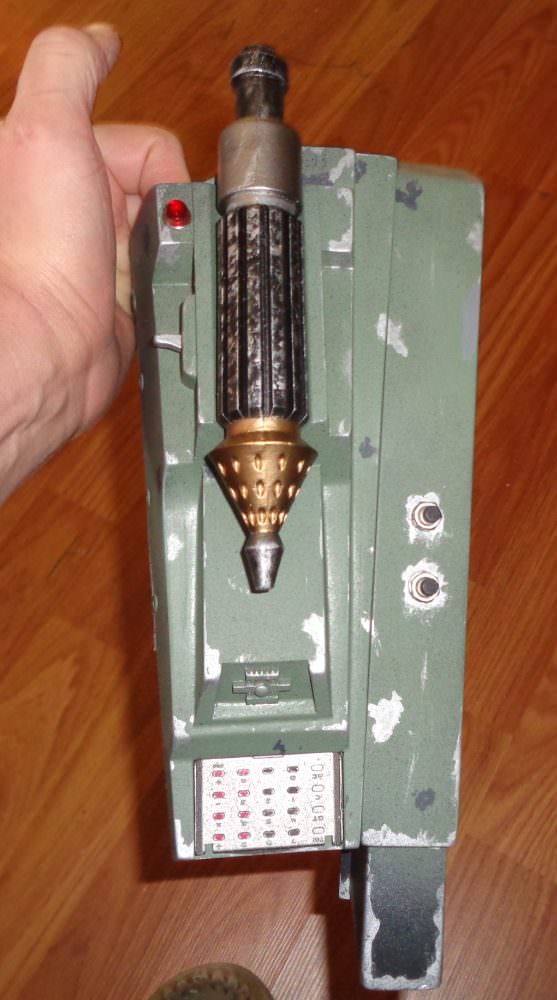

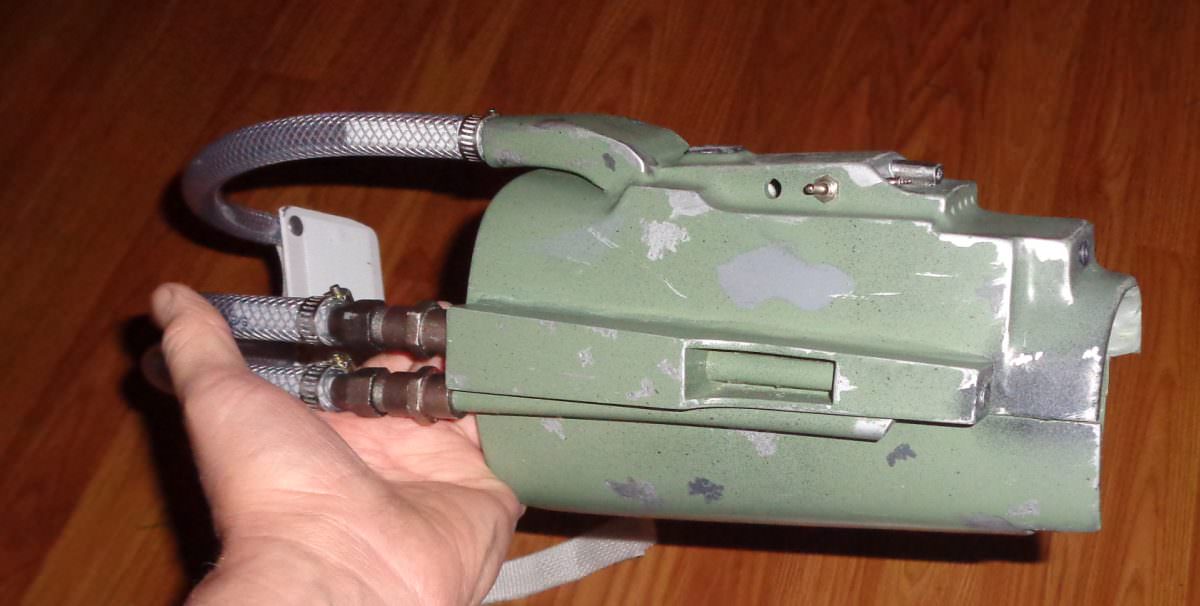

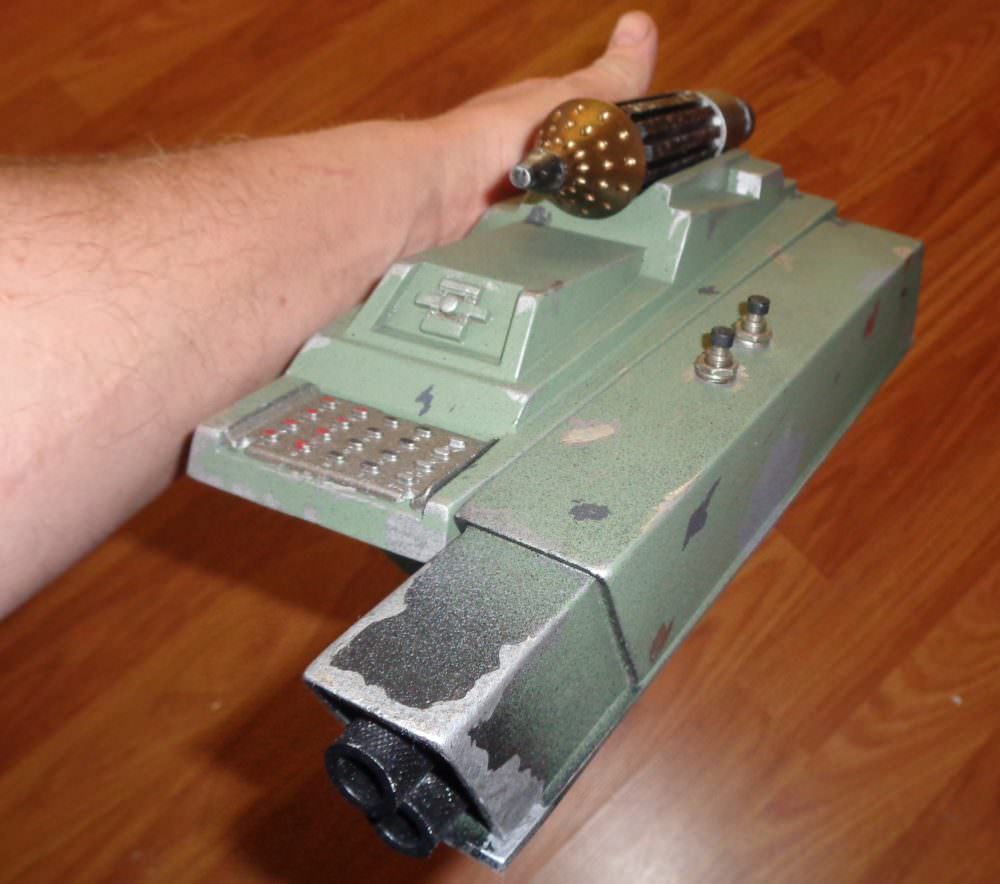

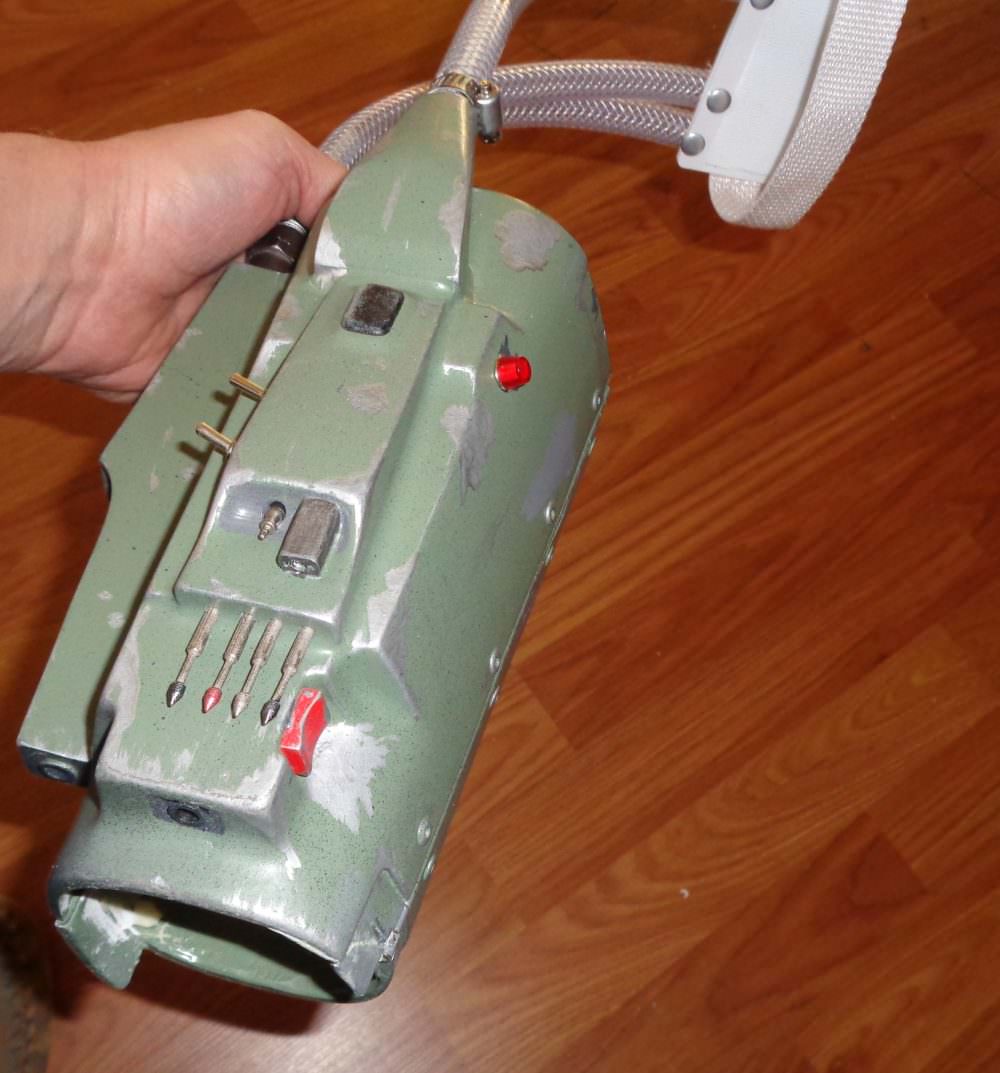

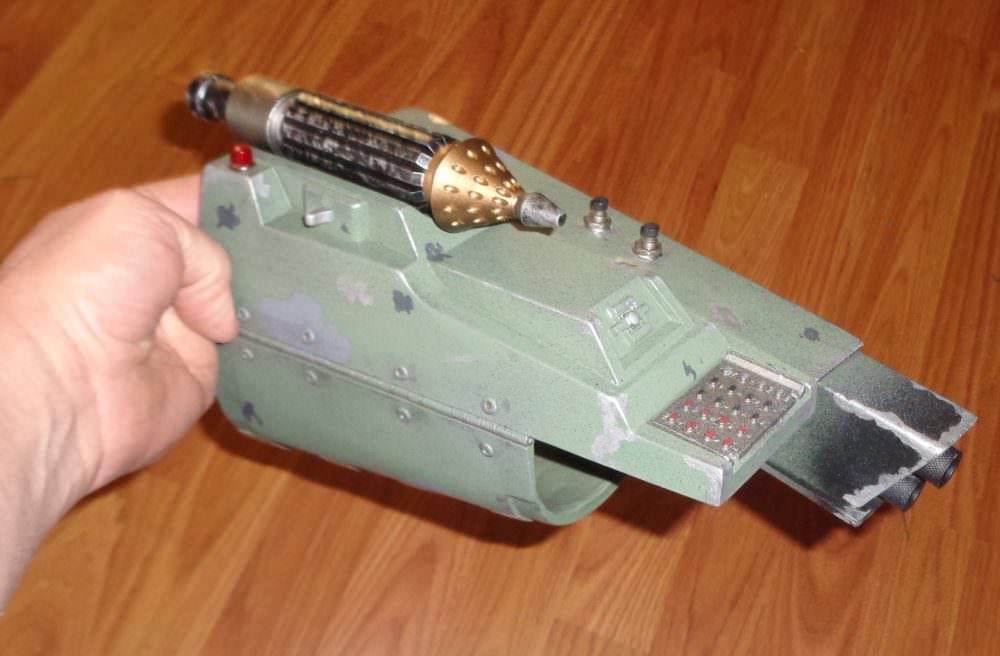

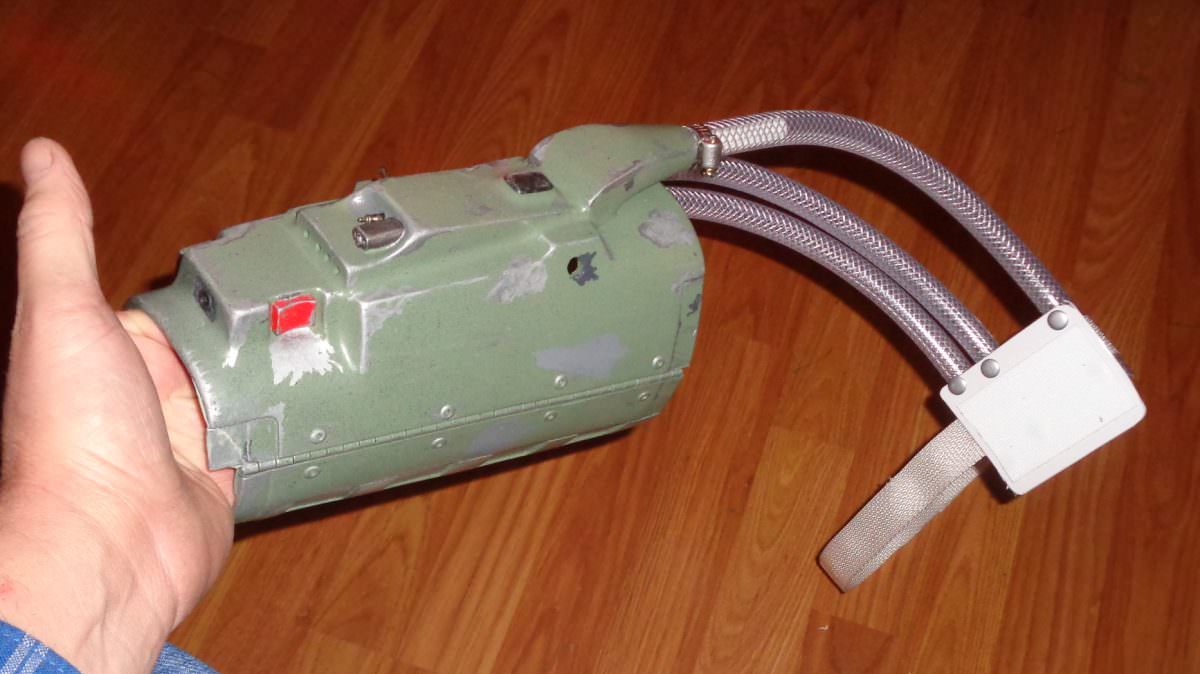

Gauntlets are pretty much done except for adding the LED's.

Lynn



[deathxcircle]

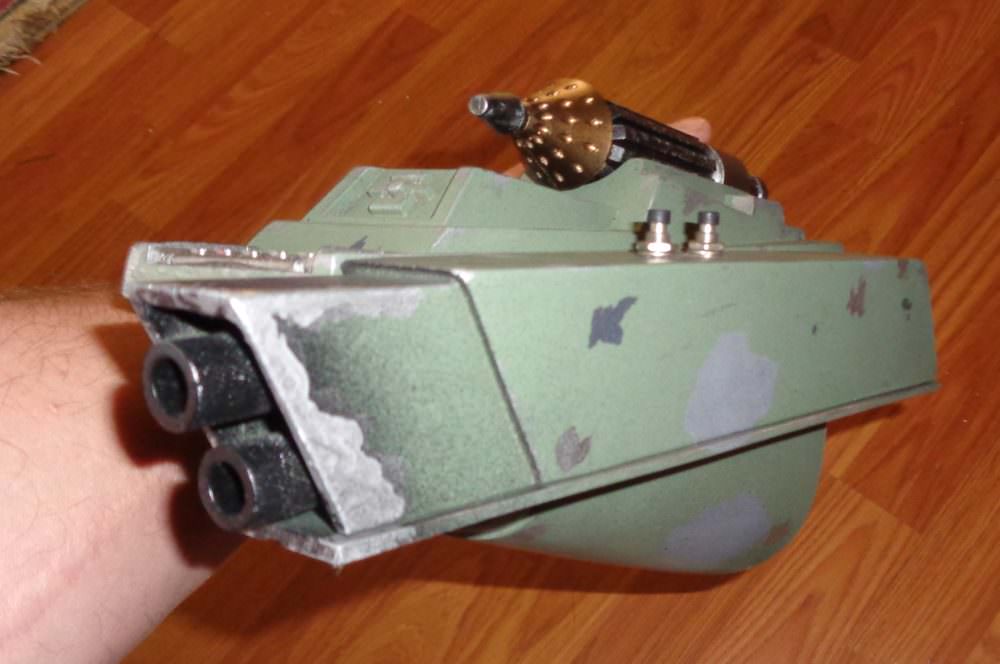

It's kind of surreal seeing ROTJ gaunts painted green. I really like the paint damage on the flamethrower. Looks great!



[Lynn TXP 0369]

It's kind of surreal seeing ROTJ gaunts painted green. I really like the paint damage on the flamethrower. Looks great!

LOL! Thanks! Yeah, it is a bit different seeing them a different color then we are used to.
Lynn



[ShortFuse]

Lynn, have you tried to heat up the hose with hot water or hair dryer to soften it up some and make it more pliable? I soaked mine in hot water and it helped quite a bit.
